Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 6

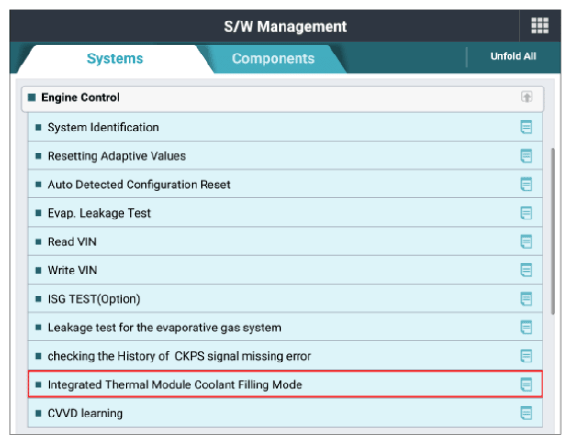

G13810006Courtesy of KIA MOTORS AMERICA, INC.

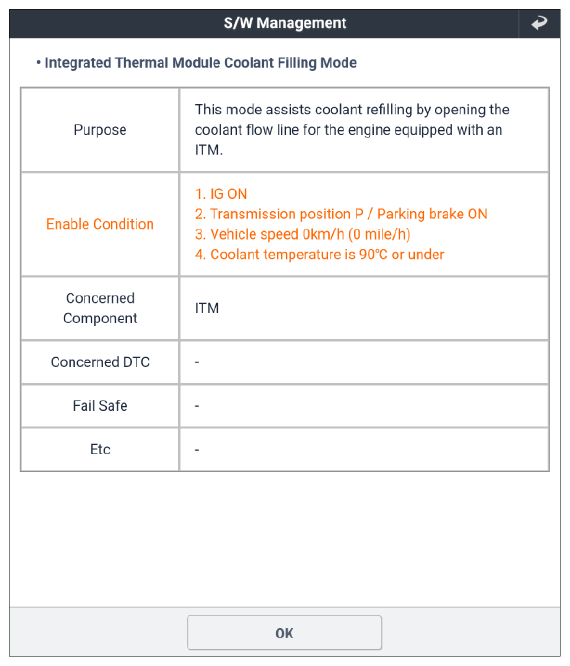

G13810007Courtesy of KIA MOTORS AMERICA, INC.

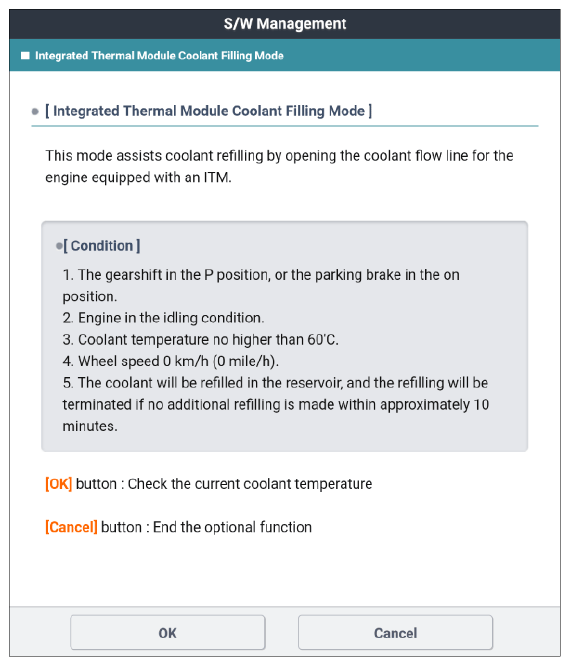

G13810008Courtesy of KIA MOTORS AMERICA, INC.

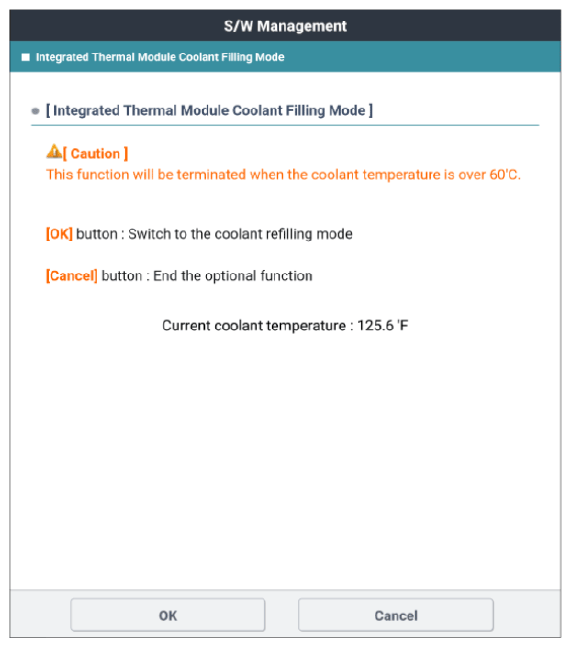

G13810009Courtesy of KIA MOTORS AMERICA, INC.

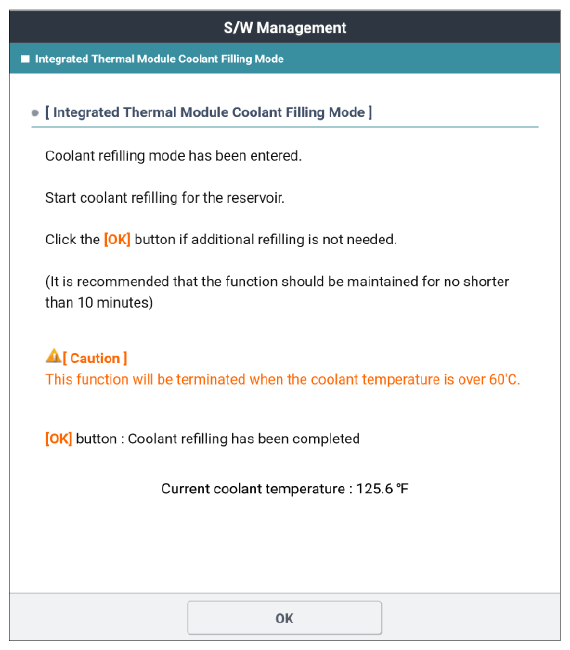

G13810010Courtesy of KIA MOTORS AMERICA, INC.

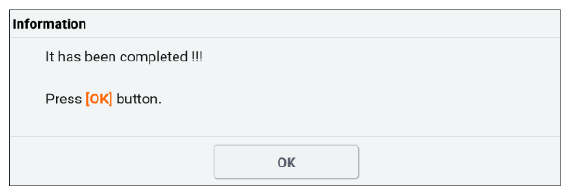

G13810011Courtesy of KIA MOTORS AMERICA, INC.
