Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ").

  2. Turn the ignition switch OFF, and then remove battery (-) terminal.

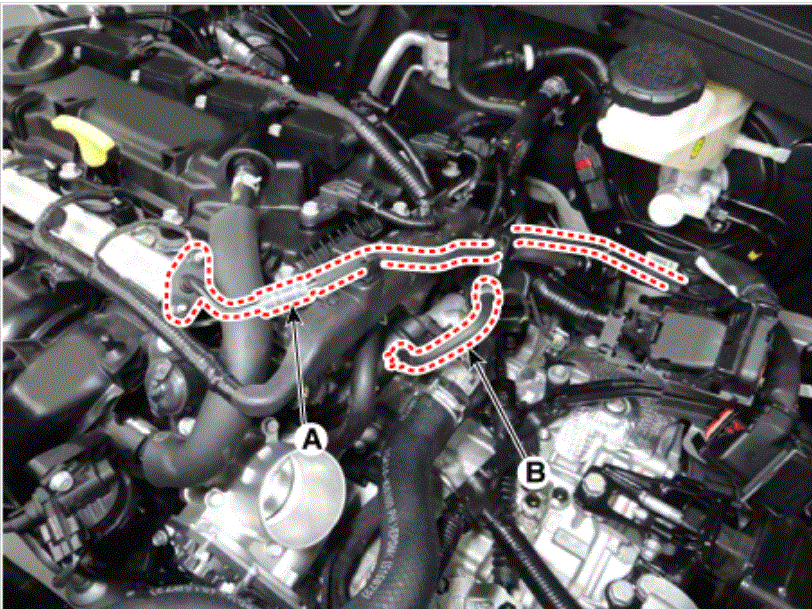

  3. Disconnect the fuel hose (A) and the purge control solenoid valve (PCSV) hose (B).
    G15694623Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the fuel tank.

    (Refer to Fuel Delivery System - "FUEL TANK ")

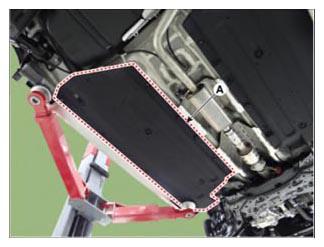

  5. Remove the under cover [LH] (A) after loosening the mounting nuts.
    G15694624Courtesy of KIA MOTORS AMERICA, INC.

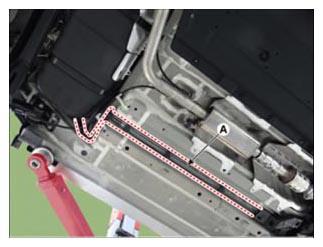

  6. Remove the fuel line (A) after loosening the mounting bolts and bracket.
G15694625Courtesy of KIA MOTORS AMERICA, INC.
