Repair Procedures: Inspection: Buzzer
WARNING: This page is about a different car, the 2025 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front bumper assembly.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")

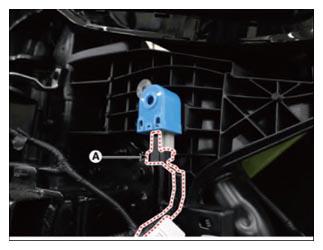

- Disconnect the buzzer connector (A).
- Test the buzzer by connecting battery power to the terminal 2 and ground the terminal 1.
