Nu 2.0 MPI

NOTE: Be careful that no contaminates enter into spark plug holes.
  1. Remove the ignition coil.

    (Refer to Ignition System - "IGNITION COIL ")

  2. Using a spark plug wrench, remove the spark plug (A).

    Tightening torque:

    14.7 - 24.5 N.m (1.5 - 2.5 kgf.m, 10.8 - 18.0 lb.ft)

    G15693962Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.
NOTE:
  • Be careful that no contaminates enter into spark plug holes.
  • Install the spark plug with the specified torque.
  • Be careful not to damage external electrode when installing the spark plug.
  • If spark plug is dropped, it may cause internal damage. Do not use it.

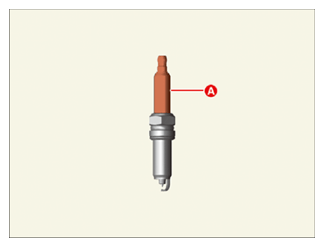

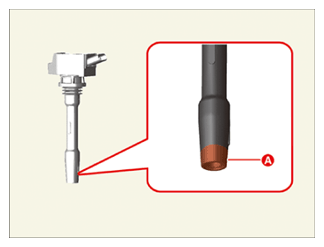

  • When assembling the parts, clean the contaminated area (A) with the cloth.
    • The cloth should be clean, free of contaminants, and soft enough to not damage the parts.

    (When replacing ignition coil and spark plug together, cleaning is not required.)

G15693963Courtesy of KIA MOTORS AMERICA, INC.
G15693964Courtesy of KIA MOTORS AMERICA, INC.
