Repair Procedures: Removal

  1. Disconnect the battery negative (-) terminal.

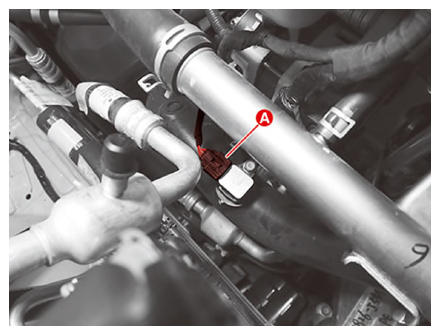

  2. Disconnect the Boost Pressure Sensor (BPS) connector (A).
    G14990726Courtesy of KIA MOTORS AMERICA, INC.

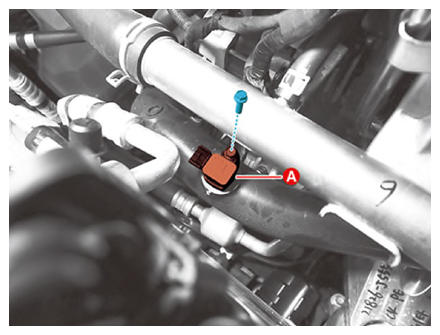

  3. Remove the BPS (A) after removing the mounting bolt.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G14990727Courtesy of KIA MOTORS AMERICA, INC.
