Repair Procedures: Installation
NOTE:
- Install the Crankshaft Position Sensor (CKPS) with the specified torque.
- If CKPS is dropped, it may cause internal damage. Do not use it.

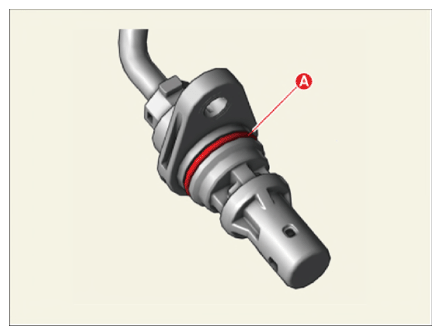

- Install the CKPS after applying the engine oil to the O-ring (A).
- Install the CKPS by pushing it into the installation hole firmly. and be careful not to damage the sensor.
- Install in the reverse order of removal.
