Repair Procedures: Installation

NOTE:

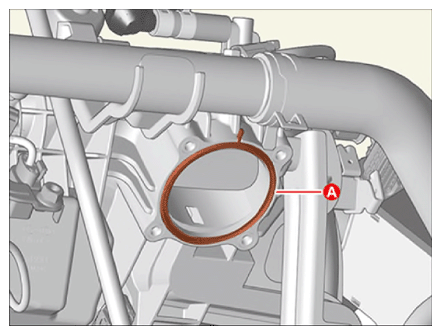

  • Check the O-ring (A) installation before installing the Electronic Throttle Control (ETC) module.
    G14990760Courtesy of KIA MOTORS AMERICA, INC.
  • Install the ETC module with the specified torque.
  • If ETC module is dropped, it may internal damage. Do not use it.
  1. Install in the reverse order of removal.
  2. Reset the Engine Control Module (ECM) adaptive values after replacing the ETC module.

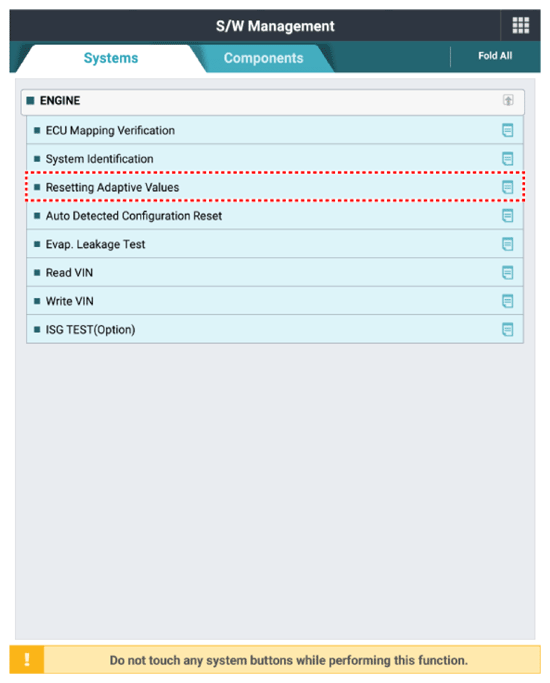

    G14990761Courtesy of KIA MOTORS AMERICA, INC.

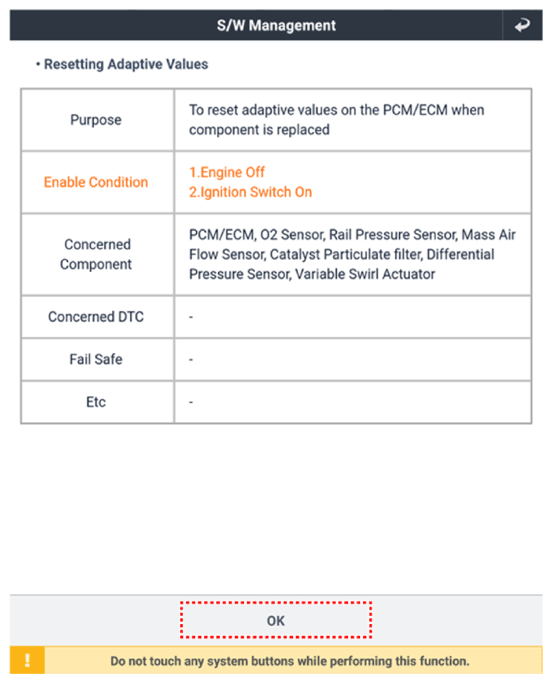

    G14990762Courtesy of KIA MOTORS AMERICA, INC.
  3. Perform the ETC learning procedure.

    (Refer to ETC (Electronic Throttle Control) System - "ADJUSTMENT ")
