Repair Procedures: Removal

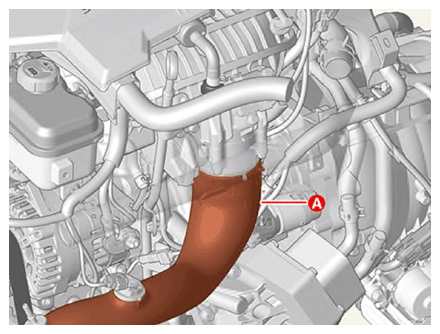

Remove the intercooler outlet hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

Information

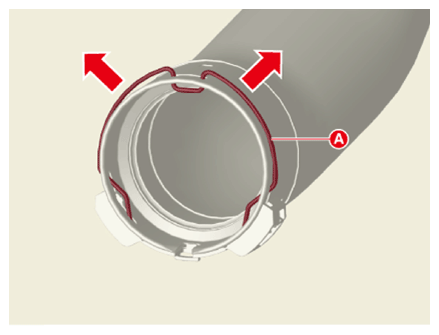

Pull the quick-connector clamp (A) in the direction of arrow.

Courtesy of KIA MOTORS AMERICA, INC.

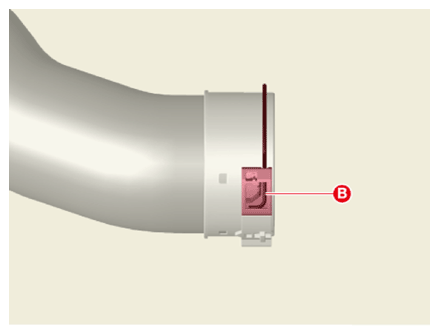

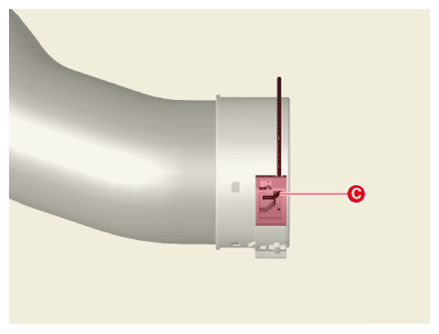

After moving the quick connector clamp from (B) to (C) as shown below, separate the intercooler outlet hose by pulling it.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

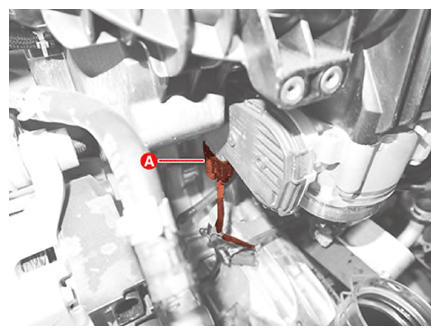

Disconnect the Electronic Throttle Control (ETC) module connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

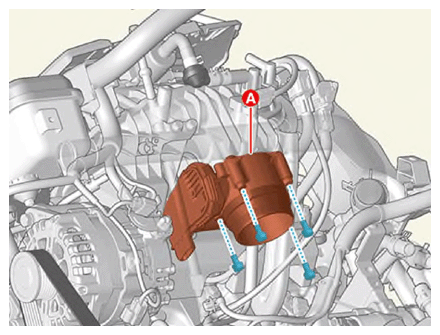

Remove the ETC module (A) after removing the mounting bolts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
