Repair Procedures: Removal

Disconnect the battery negative (-) terminal.

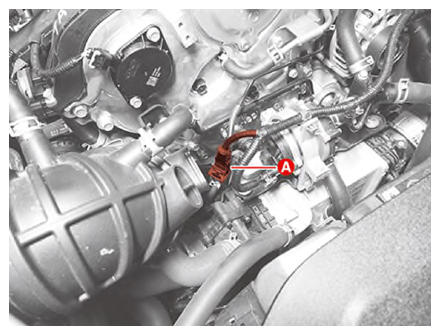

Disconnect the Electric Recirculation Control Valve (E-RCV) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Separate the E-RCV hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

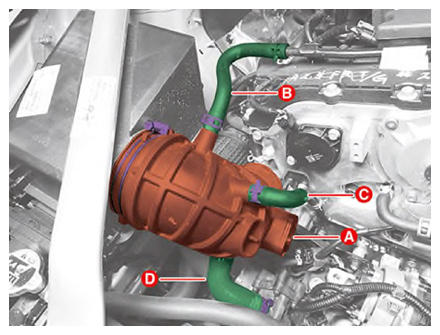

Removing the air intake hose (A) after separating the hose (B, C and D) by releasing the clamps.

Courtesy of KIA MOTORS AMERICA, INC.

Information

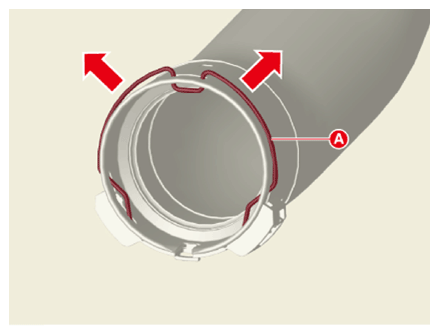

Pull the quick-connector clamp (A) in the direction of arrow.

Courtesy of KIA MOTORS AMERICA, INC.

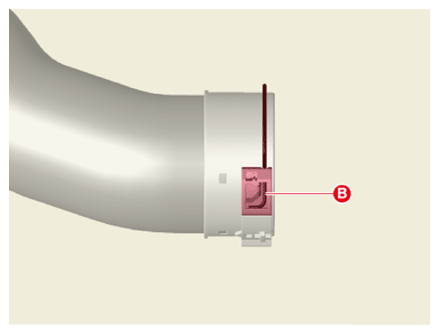

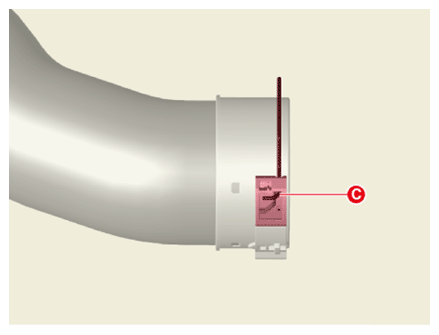

After moving the quick connector clamp from (B) to (C) as shown below, separate the intercooler outlet hose by pulling it.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

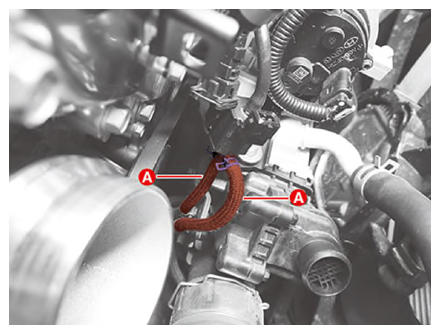

Separate the E-RCV hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

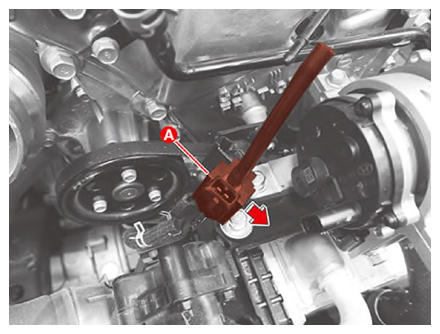

Remove the E-RCV control solenoid valve (A) by pushing it in the direction of arrow.

Courtesy of KIA MOTORS AMERICA, INC.

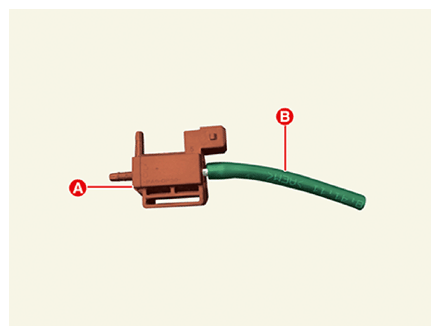

Separate the hose (B) from the E-RCV control solenoid valve (A)

Courtesy of KIA MOTORS AMERICA, INC.
