Repair Procedures: Removal

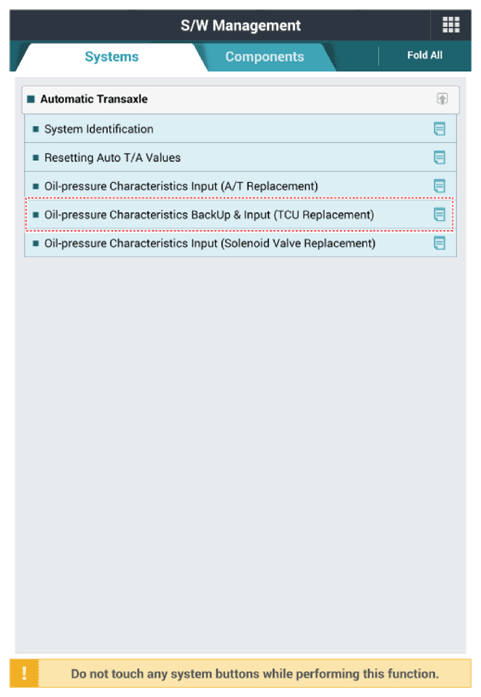

Perform the oil pressure characteristics backup procedure using the KDS when replacing with a new Engine Control Module (ECM).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the negative (-) battery terminal.

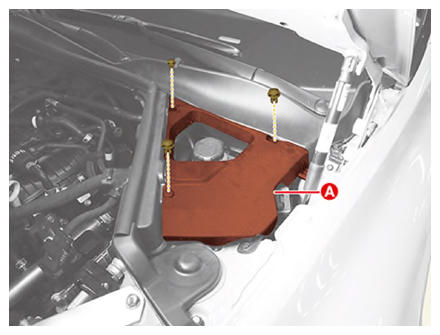

Remove the engine room side cover (A) after removing the fasteners.

Courtesy of KIA MOTORS AMERICA, INC.

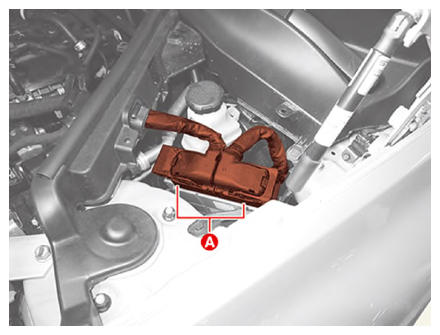

Disconnect the ECM connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

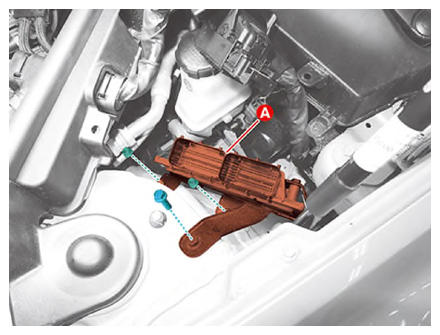

Remove the ECM (A) after removing the mounting bolt and nuts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

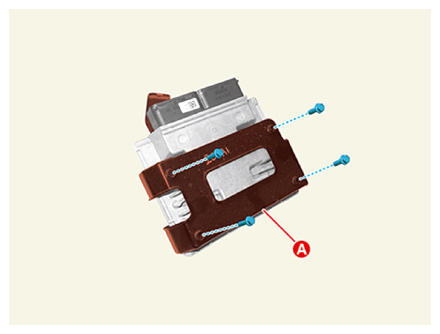

Remove the bracket (A) after removing the mounting bolts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
