Engine Coolant Temperature Sensor (ECTS) - ITM

  1. Disconnect the battery negative (-) terminal.
  2. Remove the engine cover.

    (Refer to Engine Mechanical System - "ENGINE COVER ")

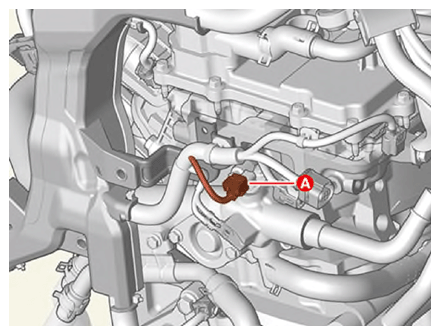

  3. Disconnect the Engine Coolant Temperature Sensor (ECTS) connector (A).
    G14990768Courtesy of KIA MOTORS AMERICA, INC.

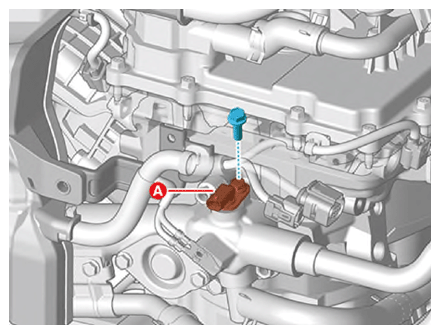

  4. Remove the ECTS (A) after removing the mounting bolt (A).

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

G14990769Courtesy of KIA MOTORS AMERICA, INC.
