Repair Procedures: Installation

Install in the reverse order of removal.

NOTE:

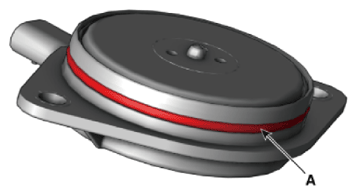

Install the VFS after applying the engine oil to the O-ring (A).

G14990851

Courtesy of KIA MOTORS AMERICA, INC.

Apply the engine coolant to the O-ring (A).
If VFS is dropped, it may cause internal damage. Do not use it.
