Circuit Inspection

G14974364

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	EWP connector	4 (ON/START Input)	Chassis ground	-	B+
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	EWP connector	3 (ground)	Chassis ground	-	Approx. below 1Ω
	EWP connector	4 (ON/START Input)	Chassis ground	-	∞ (infinity)Ω
	EWP connector	2 (LIN)	ECM connector	27 (LIN2)	Approx. below 1Ω
Ignition "ON".	EWP connector	2 (LIN)	Chassis ground	-	Fig.1

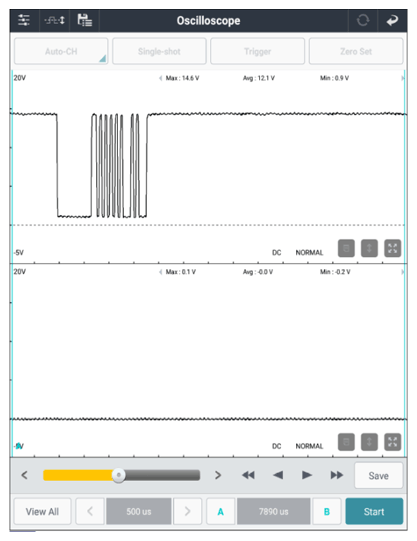

G14974365

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, Go to "Verification Of Repair " procedure.
