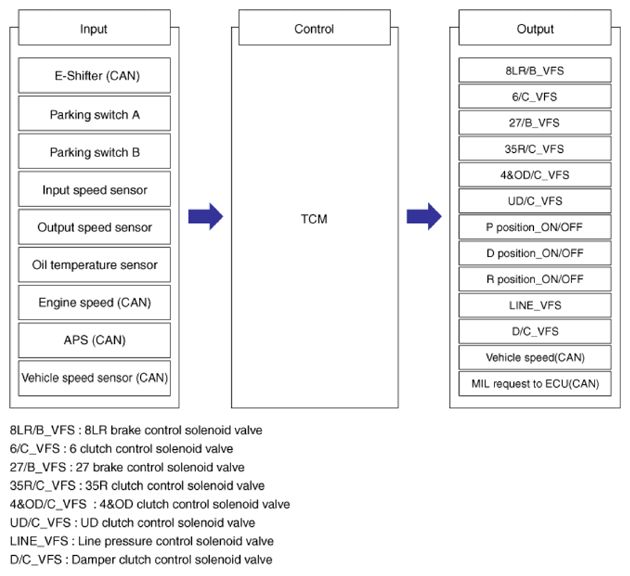

Control System Composition

Courtesy of KIA MOTORS AMERICA, INC.

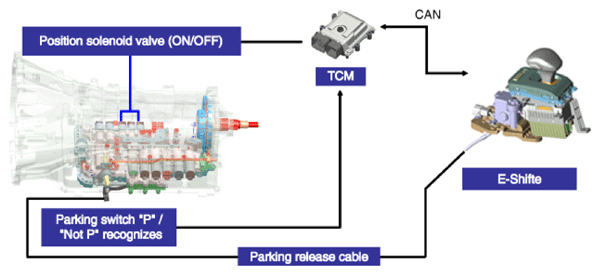

Shift By Wire (SBW) System Composition

Courtesy of KIA MOTORS AMERICA, INC.

* Operating Principle

• - Instead of cable, the system uses electronic signals to shift between the P-R-N-D gears.
• - Structurally designed to ensure that the vehicle is in park at all times when the power is off.
