TCM adaptive values learning

• TCM adaptive values learning: When shift shock occurs or parts related with the transmission are replaced, TCM learning should be performed.
• In the following case, TCM learning is required.

• - Automatic transmission assembly replacement
• - TCM upgrade or replacement
• - Solenoid valve replacement

TCM adaptive values learning procedure: Repeat the above procedure least five times as shown in the pattern of illustration below.

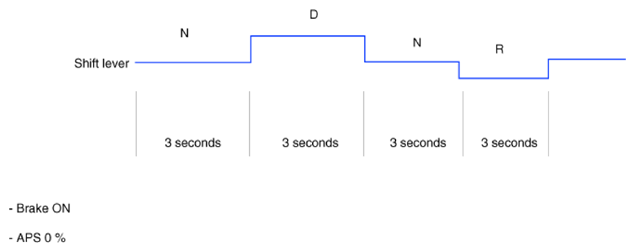

• Static relearn (condition: ATF temperature 30 - 95°C (86 - 203°F)

Courtesy of KIA MOTORS AMERICA, INC.

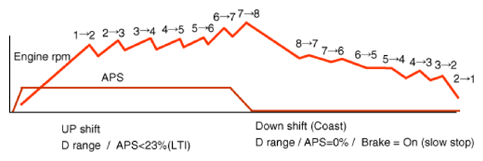

• Driving relearn

1. Drive the vehicle through all gears at D range. Drive from stop to 1st to 2nd to 3rd to 4th to 5th to 6th to 7th to 8th with keeping fixed throttle open.
2. Down shift from 8th to 7th, 7th to 6th, 6th to 5th, 5th to 4th, 4th to 3rd, 3rd to 2nd, 2nd to 1st.

Courtesy of KIA MOTORS AMERICA, INC.
