Removal & Installation: Removal

Information

If necessary to replace the Fuel Pump Control Module (FPCM), replace the plate cover assembly.

1. Remove the fuel pump module.

   (Refer to Fuel Delivery System - "FUEL PUMP MODULE ")

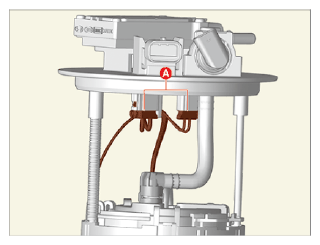

2. Disconnect the fuel pump motor connector (A) and fuel sender connector (B).

   Courtesy of KIA MOTORS AMERICA, INC.

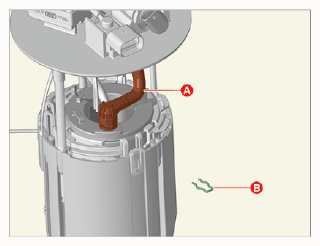

3. Separate the feed tube (A) after removing the clip (B).

   Courtesy of KIA MOTORS AMERICA, INC.

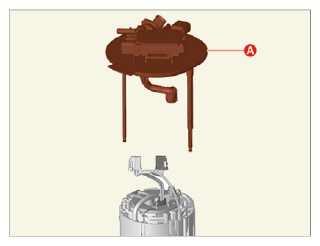

4. Remove the fuel pump plate assembly (A).

   Courtesy of KIA MOTORS AMERICA, INC.

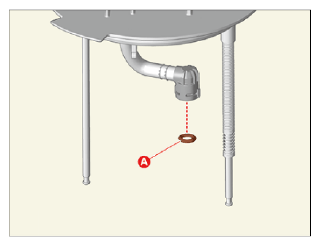

5. Remove the O-ring (A).

   Courtesy of KIA MOTORS AMERICA, INC.

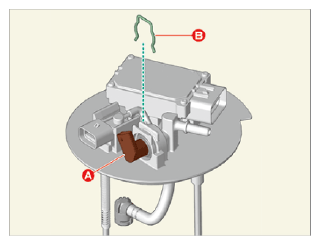

6. Remove the Fuel Pressure Sensor (FPS) (A) after removing the clip (B).

   Courtesy of KIA MOTORS AMERICA, INC.

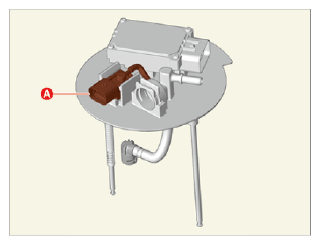

7. Remove the Fuel Tank Pressure Sensor (FTPS) (A).

Courtesy of KIA MOTORS AMERICA, INC.
