Component Inspection

  1. Disconnect battery negative (-) terminal.
  2. Disconnect the Fuel Pump Control Module (FPCM) connector.

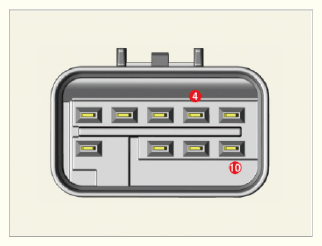

  3. Check fuel pump operation by connecting power to terminal 10 (+) and ground to terminal 4 (-) of connector.
G15693486Courtesy of KIA MOTORS AMERICA, INC.
Terminal Function
4 (-)
10 (+)
