Removal & Installation: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Disconnect the battery negative (-) terminal.

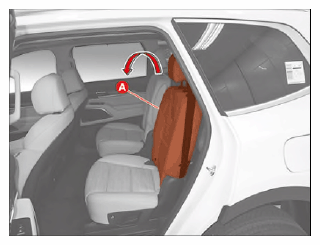

  3. Fold the rear seat back assembly (A) in the direction of the arrow.
    G15693488Courtesy of KIA MOTORS AMERICA, INC.

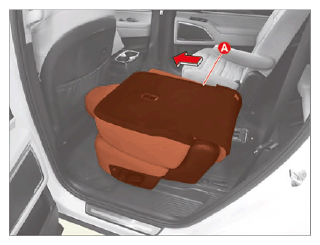

  4. Move the rear seat assembly (A) forward as far as possible in the direction of the arrow.
    G15693489Courtesy of KIA MOTORS AMERICA, INC.

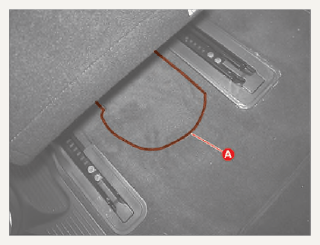

  5. Cut the cover along the line (A).
    G15693490Courtesy of KIA MOTORS AMERICA, INC.

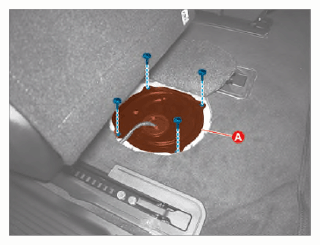

  6. Remove the fuel pump service cover (A) after removing the screws.
    G15693491Courtesy of KIA MOTORS AMERICA, INC.

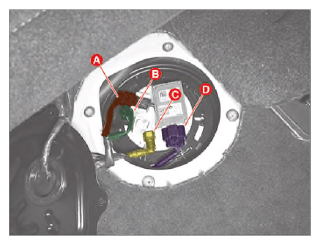

  7. Separate and disconnect the connectors.
    1. Fuel Tank Pressure Sensor (FTPS) connector
    2. Fuel Pressure Sensor (FPS) connector
    3. Fuel feed tube quick-connector
    4. Fuel Pump Control Module (FPCM) connector
      G15693492Courtesy of KIA MOTORS AMERICA, INC.

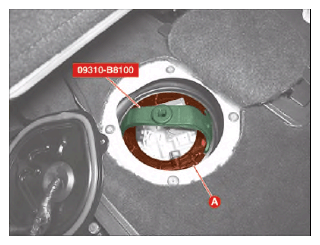

  8. Remove the fuel pump plate cover (A) with SST (09310 - B8100).
    G15693493Courtesy of KIA MOTORS AMERICA, INC.

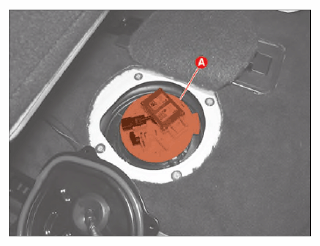

  9. Remove the fuel pump module (A).
G15693494Courtesy of KIA MOTORS AMERICA, INC.
