Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

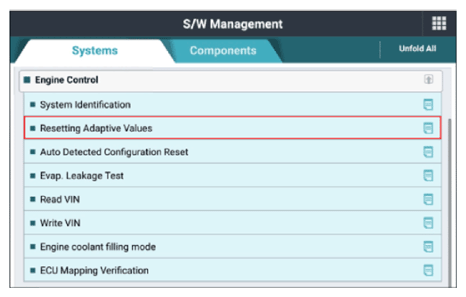

G15725223Courtesy of KIA MOTORS AMERICA, INC.

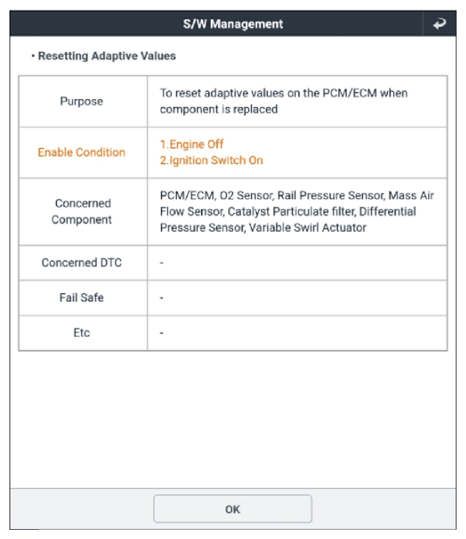

G15725224Courtesy of KIA MOTORS AMERICA, INC.

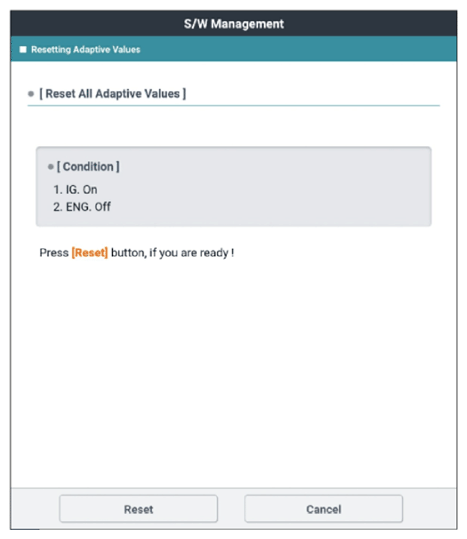

G15725225Courtesy of KIA MOTORS AMERICA, INC.

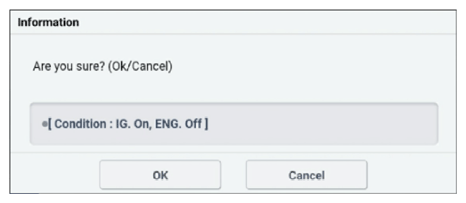

G15725226Courtesy of KIA MOTORS AMERICA, INC.

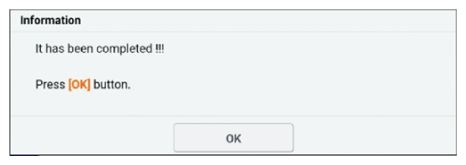

G15725227Courtesy of KIA MOTORS AMERICA, INC.
