Engine Control System Diagnosis (13 Of 13)
>>
DTC P2B95-00: Cold Start Injection Pulse Performance
>>
Wiring Inspection
>>
Circuit Inspection
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

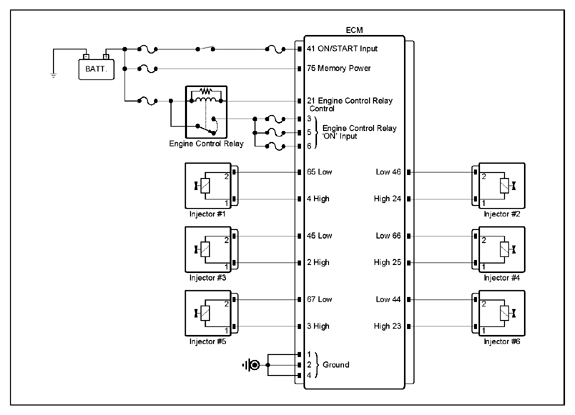

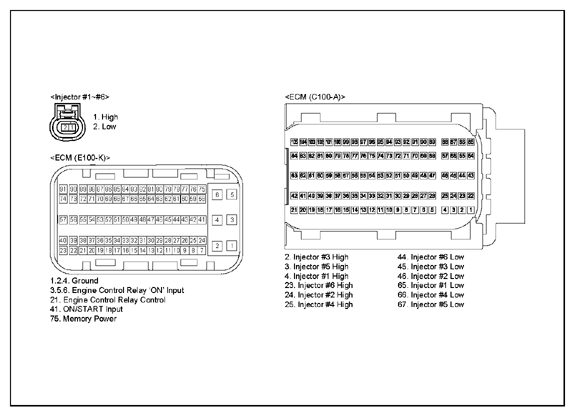

Circuit Inspection: Notes
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
