Components & Components Location: Component

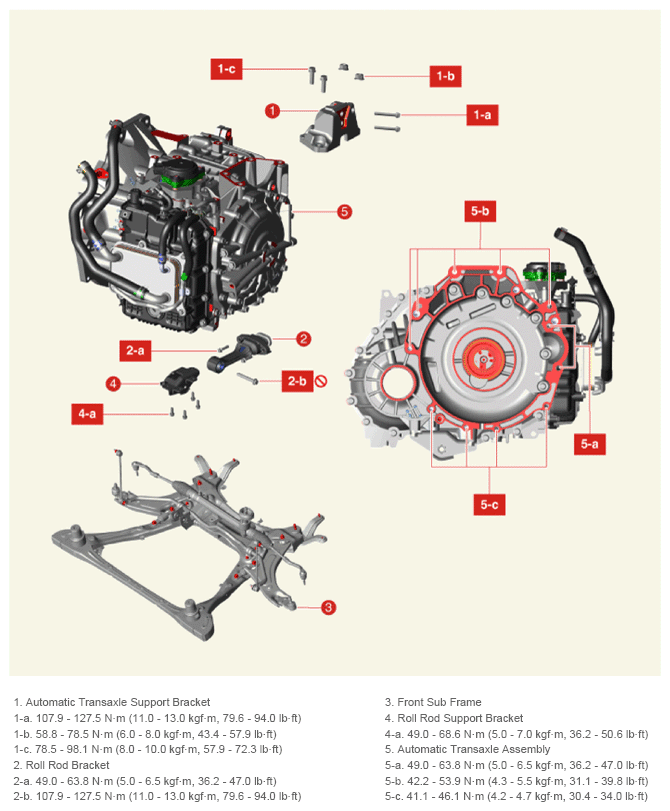

Fig 1: Automatic Transaxle System Components Location With Torque Specification
G14797613Courtesy of KIA MOTORS AMERICA, INC.
