Monitor DTC Status
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

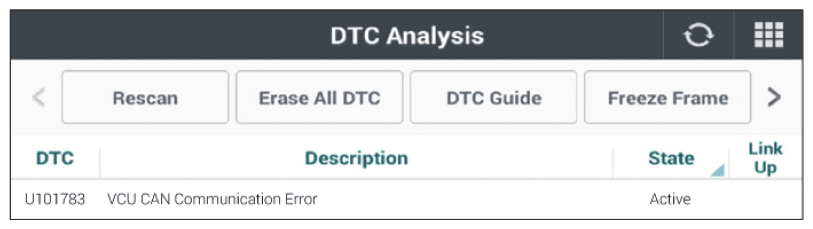

Fig. 1 |
Active Fault
- Go to "WIRING INSPECTION " procedure.
History/Pending Fault
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of 12V battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair as necessary and then go to "VERIFICATION OF REPAIR " procedure.
