System Operation Spec - Front Sensor

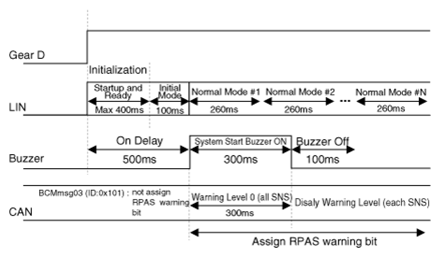

When the system has the power (after IGN ON and D gear), MICOM checks every sensor channel. In case it is not find any error, it sounds 500 ms afterward. But it finds any error even a sensor, it sounds buzzer corresponding fault sensor instead of initial starting alarm. If PDW ON switch in OFF, system doesn't work. Function for normal mode entrance is as below.

Courtesy of KIA MOTORS AMERICA, INC.

* In the initial mode, IPM (IBU) judges only sensor fail.

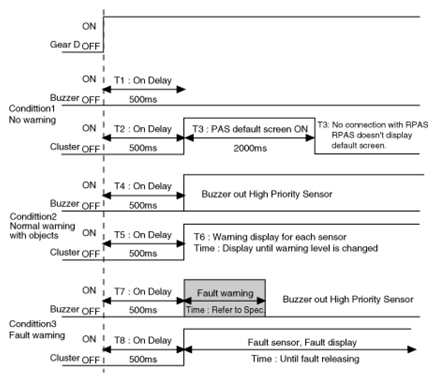

With D gear, system function is as below.

Courtesy of KIA MOTORS AMERICA, INC.

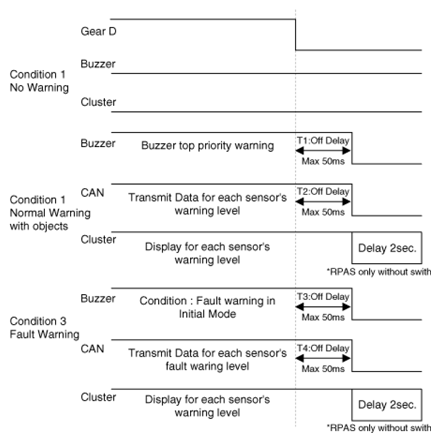

With D gear releasing, system function is as below

Courtesy of KIA MOTORS AMERICA, INC.
