ESC Variant Coding: Notes

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "ESC Variant Coding" in "Vehicle S/W management" with KDS.
 Fig.1 to 5

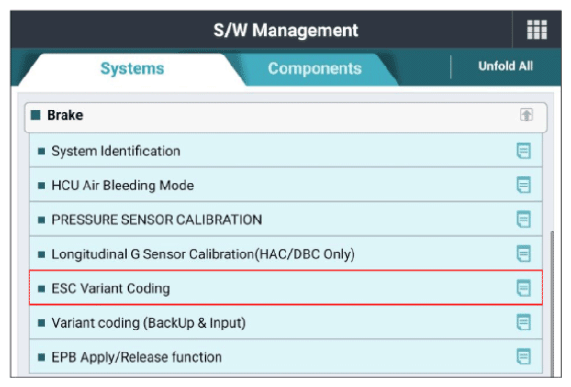

G14574074Courtesy of KIA MOTORS AMERICA, INC.

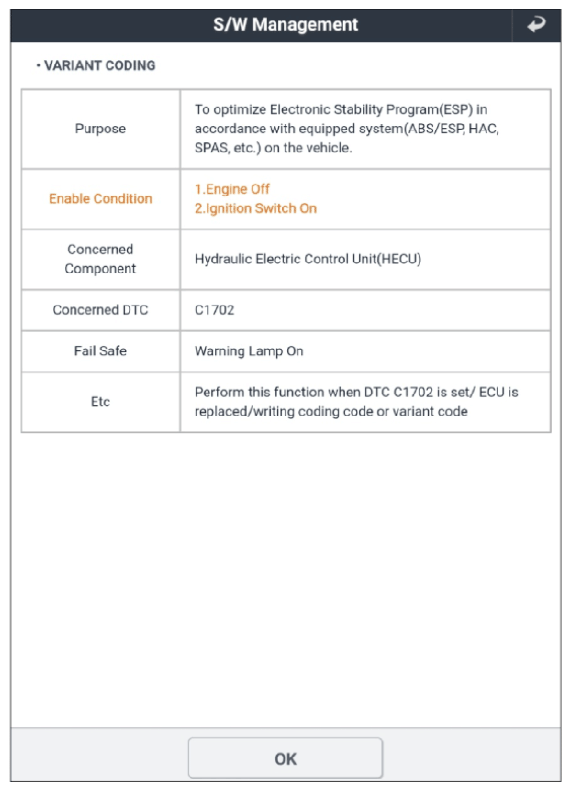

G14574075Courtesy of KIA MOTORS AMERICA, INC.

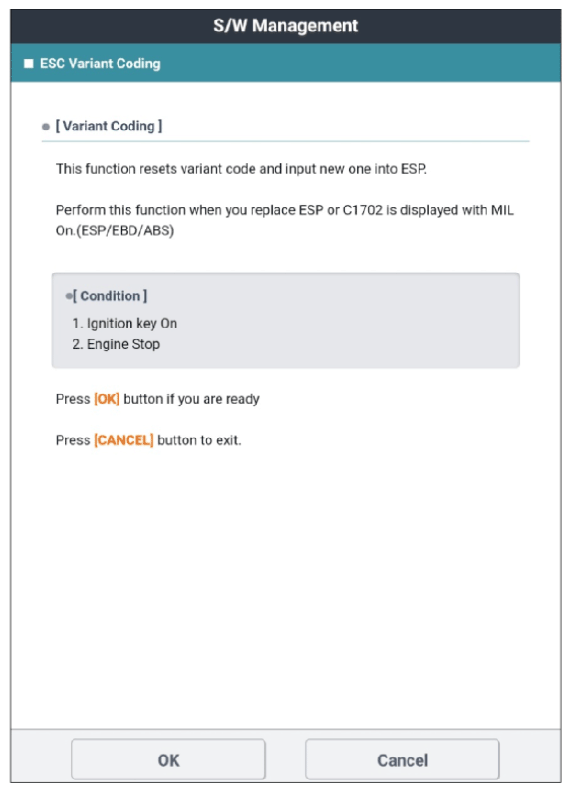

G14574076Courtesy of KIA MOTORS AMERICA, INC.

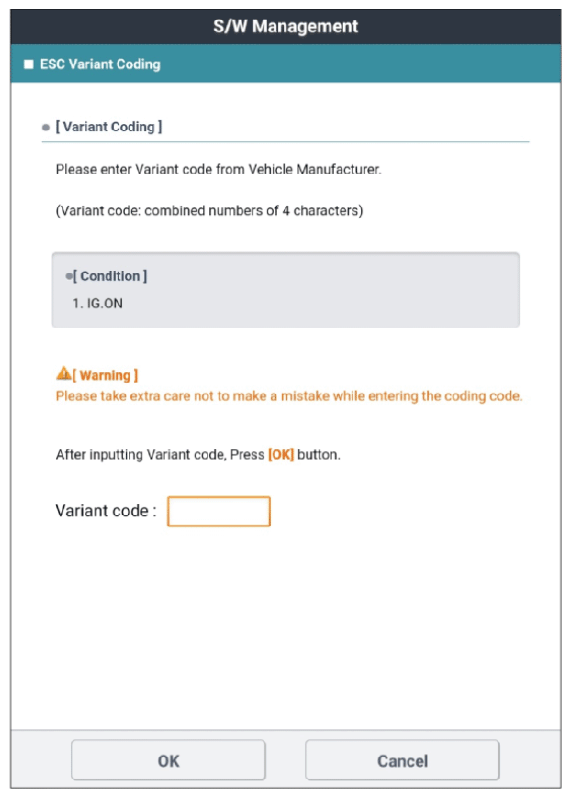

G14574077Courtesy of KIA MOTORS AMERICA, INC.
G14574078Courtesy of KIA MOTORS AMERICA, INC.
