Vehicle S/W Management
| Inspection Condition |
Inspection Procedure |
Reference |
- Ignition "ON".
|
- Ignition switch "OFF".
- Connect KDS to Data Link Connector (DLC).
- Select the "Vehicle S/W Management" for the related DTC with KDS.
- Perform
"Oil-pressure Characteristics BackUp & Input (TCU Replacement)" below, and Go to "VERIFICATION OF REPAIR " procedure.
|
Fig.1 to 9 |

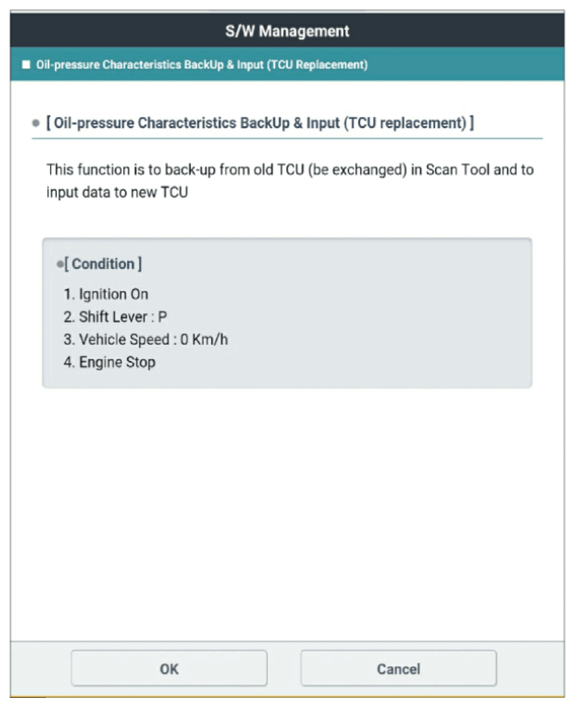

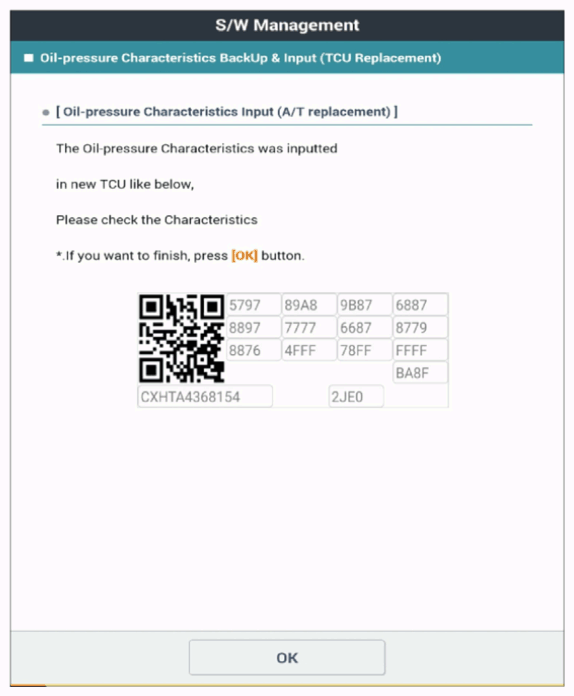

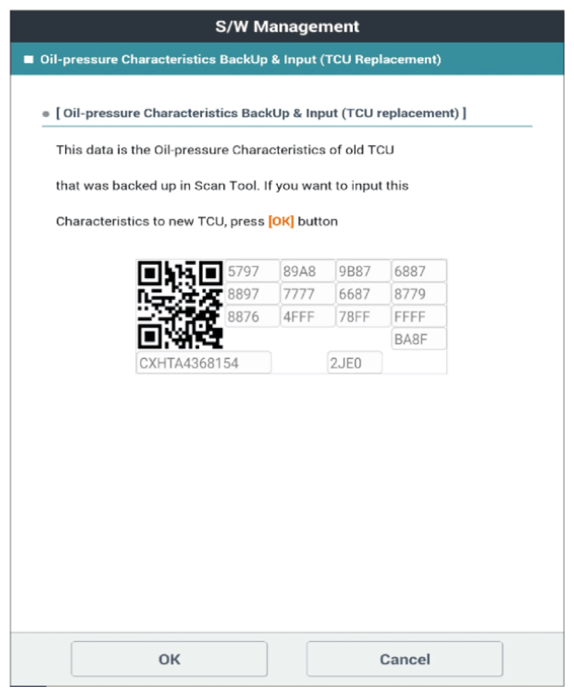

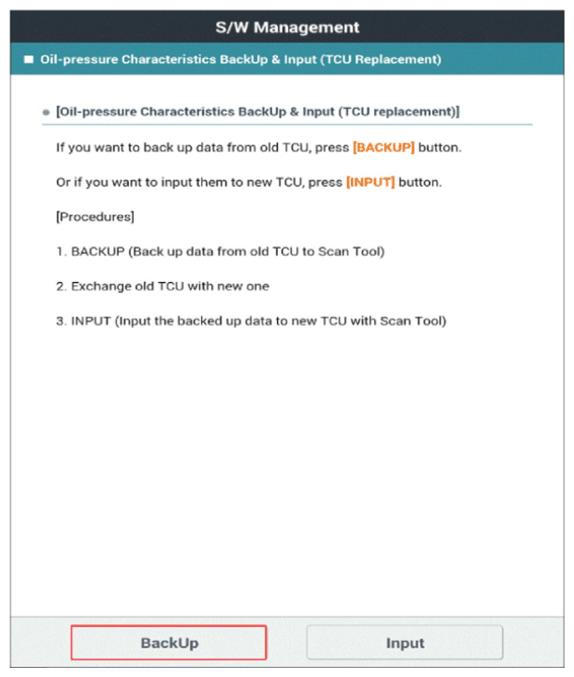

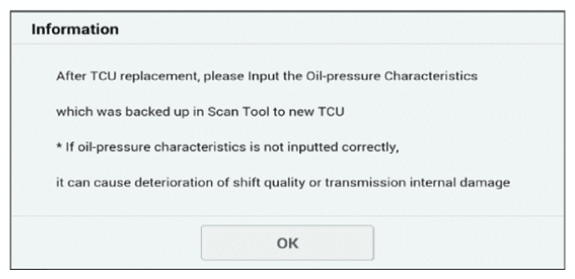

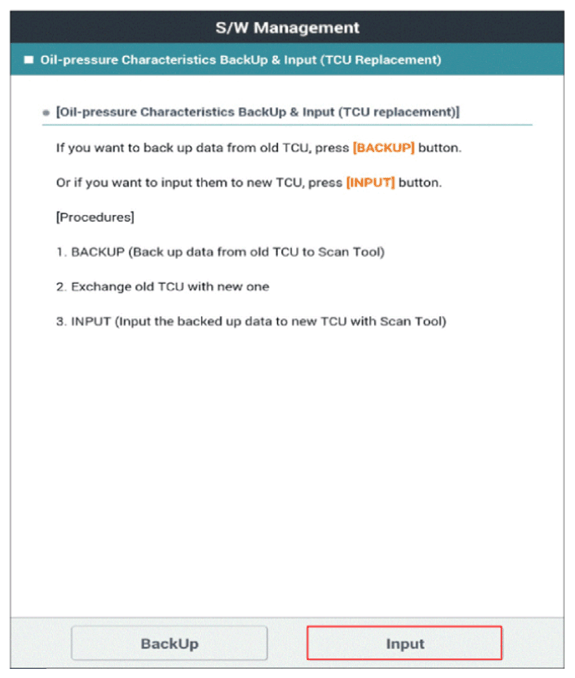

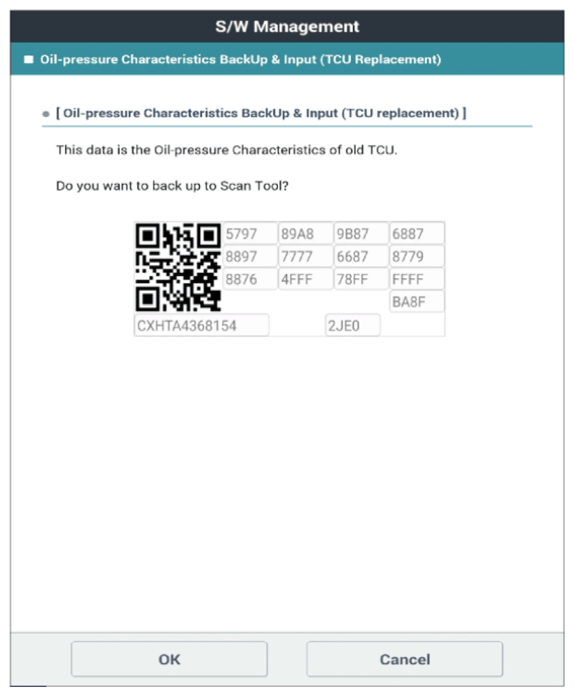

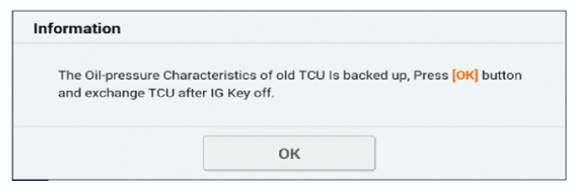

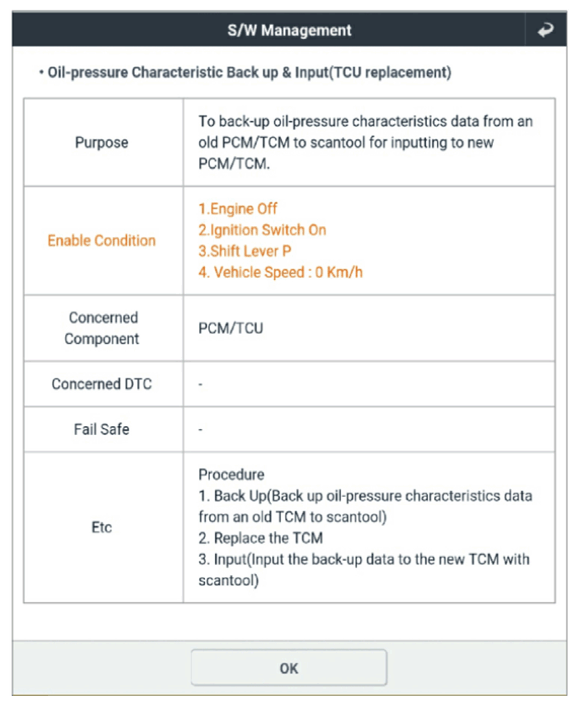

Fig.1 to 9) Oil-pressure Characteristics BackUp & Input (TCU Exchange)
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
