Repair Procedures: Removal: Buzzer

  1. Disconnect the negative battery terminal.
  2. Remove the under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

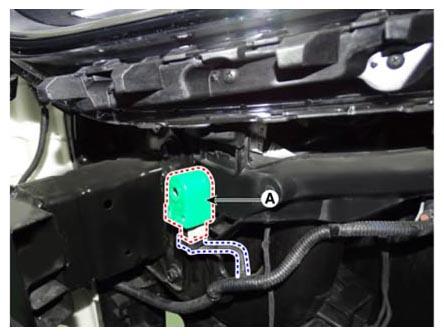

  3. Remove the buzzer (A) after disconnecting the connector.
    G14557020Courtesy of KIA MOTORS AMERICA, INC.
