Removal And Installation: Installation
WARNING:
- When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
- When working on the high voltage system or related components, be sure to observe and be aware of the "HIGH VOLTAGE SYSTEM GENERAL SAFETY INFORMATION AND CAUTION ". If not, it may cause serious accidents due to electric shock or short circuit.
- When working on high voltage system, make sure to check the PERSONAL PROTECTIVE EQUIPMENT (PPE) and HIGH VOLTAGE SHUT-OFF PROCEDURES .
- Install in reverse order of removal.
NOTE:
- Install the spark plug to the specified torque.
- If the spark plug is dropped, it may cause internal damage. (Do not reuse)
- Be careful not to damage external electrode when installing the spark plug.

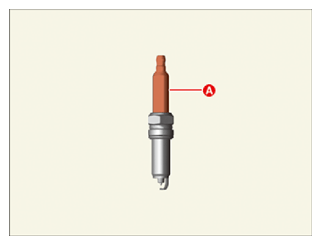

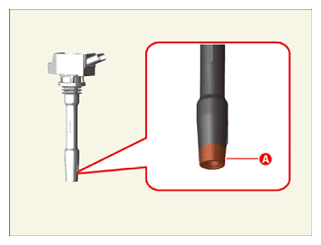

- When assembling the parts, clean the contaminated area (A).
- The cloth should be clean, free of contaminants, and soft enough to not damage the parts.
(When replacing ignition coil and spark plug together, cleaning is not required.)
