Removal & Installation: Removal

1. Disconnect the battery negative (-) terminal.

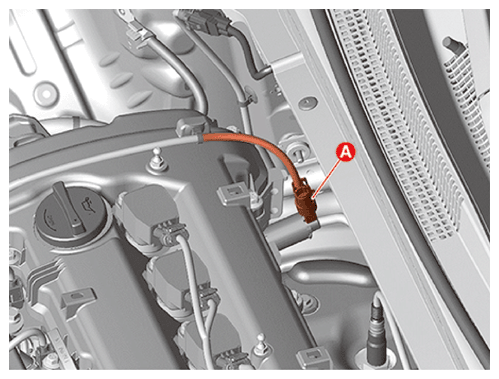

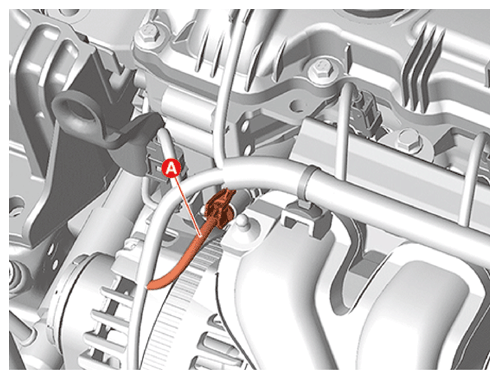

2. Remove the engine cover.

   (Refer to Engine Mechanical System - " ENGINE COVER  ")

3. Disconnect the Oil Control Valve (OCV) connector (A).

   [Intake]

   Courtesy of KIA MOTORS AMERICA, INC.

   [Exhaust]

   Courtesy of KIA MOTORS AMERICA, INC.

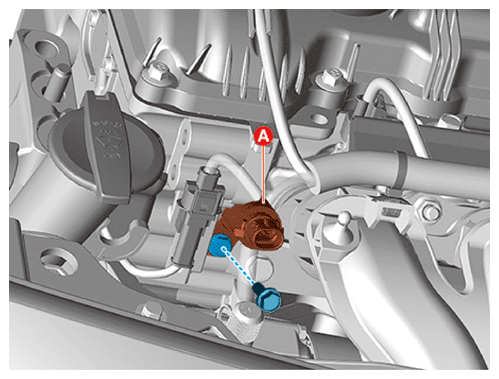

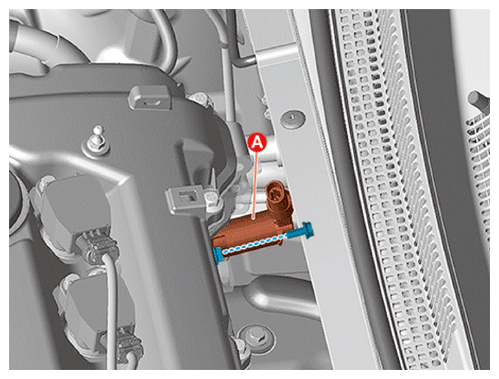

4. Remove the OCV (A) after removing the bolt.

   Tightening torque:

   9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

   [Intake]

Courtesy of KIA MOTORS AMERICA, INC.

[Exhaust]

Courtesy of KIA MOTORS AMERICA, INC.
