Removal & Installation: Removal

Disconnect the battery negative (-) terminal.
Remove the engine compartment under cover.
(Refer to Engine Mechanical System - " ENGINE ROOM UNDER COVER ")

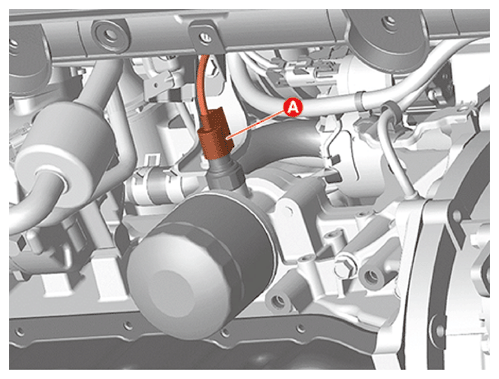

Disconnect the Oil Pressure Sensor (OPS) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

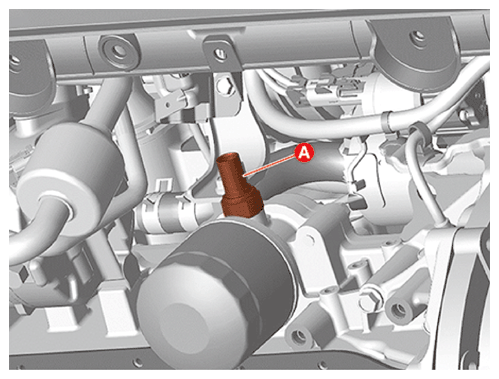

Remove the OPS (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
