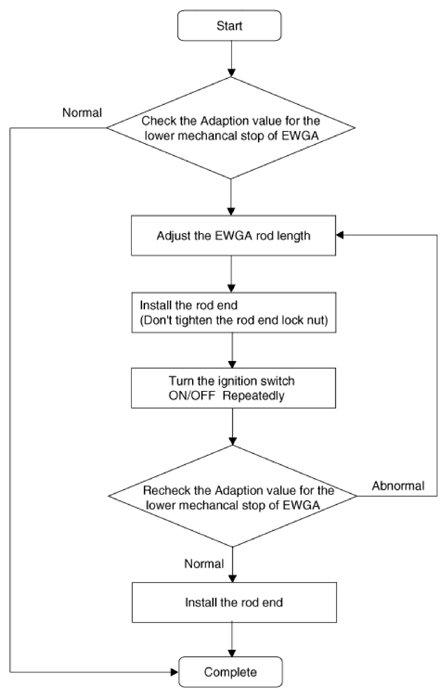

[Rod Adjustment Procedure Flowchart]

G14957001Courtesy of KIA MOTORS AMERICA, INC.
  1. Check that the waste gate turbo charger is cool enough to work.
    IMPORTANT:
    • It can help cool down faster using an electric fan.

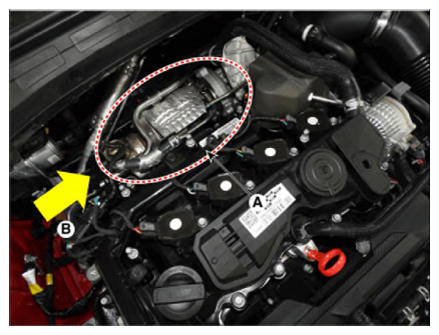

    • The cooling part (A) and the wind direction (B) are as follows.
    G14957002Courtesy of KIA MOTORS AMERICA, INC.
  2. Turn the ignition switch to OFF position.
  3. Connect the diagnostic tool to DLC connector (16 pin) under the driver side instrument panel.
  4. Turn the ignition switch ON position.
    CAUTION: Do not start the engine.
  5. Select VIN or Vehicle on the initial screen.
  6. Enter "Engine Control" menu after selecting vehicle information (Vehicle model, Model year, Engine type) or entering the VIN number.
  7. Access to KDS Engine > Current Data
  8. Without starting the engine, cycle the ignition ON for 5 seconds then ignition OFF for 5 seconds then check the "Adaption value for the low mechanical stop of EWGA" on the KDS.

    Repeat this step until the amount of the adoption value change compared to previous cycle is below 0.05V.

    NOTE: Do not start the engine. This is a crucial step to read the correct adoption value.
  9. Check that "Adaption value for the lower mechanical stop of EWGA" is within the specified voltage value.

    Voltage:  3.5 - 3.7 V

  10. If the voltage value measured is not within the specified voltage value, adjust the EWGA rod length. But, if no, no further procedure is required.

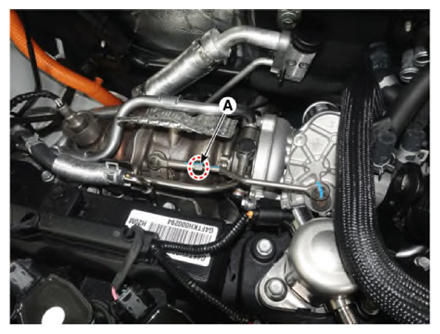

    1. Slightly loosen the rod end lock nut (A).
      G14957003Courtesy of KIA MOTORS AMERICA, INC.

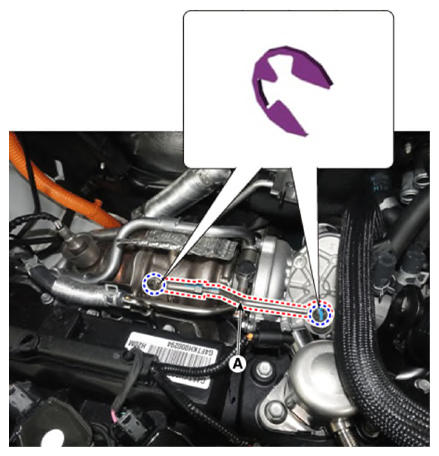

    2. Remove the rod (A) after removing the retaining rings.
      G14957004Courtesy of KIA MOTORS AMERICA, INC.

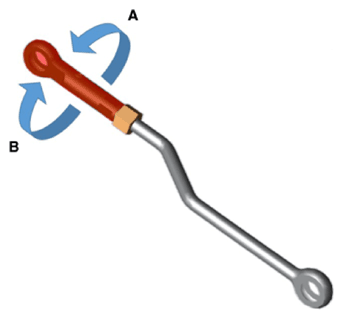

    3. Adjust the rod end part by rotating it clockwise (A) or counterclockwise (B) to satisfy the specification.

      For example, if the coolant temperature is below 25 ΩC adjusted as follows.

      Adaption value for the lower mechanical stop of EWGA (V) Adjustment direction of rod end Rod length variation (After adjustment)
      > 3.7 counterclockwise Longer
      < 3.5 clockwise Shorter
      IMPORTANT:
      Turning angle Changing level of the adoption value (V)
      0.5 turn (180Ω) About 0.1
      1 turn (360Ω) About 0.2
      G14957005Courtesy of KIA MOTORS AMERICA, INC.

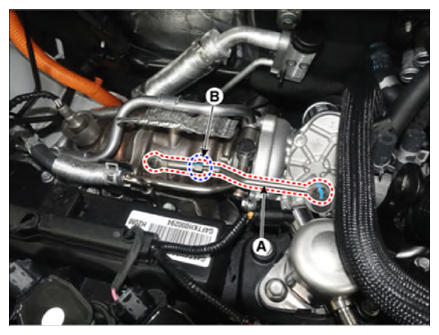

  11. Install the rod end (A) to the turbo charger lever temporarily. Don't tighten the rod end lock nut (B) and retaining ring.
    G14957006Courtesy of KIA MOTORS AMERICA, INC.
  12. Check "Adaption value for the lower mechanical stop of EWGA" after selecting "Current Data" menu.

    Turn the ignition switch ON/OFF repeatedly until the changing value of "Adaption value for the lower mechanical stop of EWGA" is within 0.05V.

    NOTE: Turn the ignition switch ON/OFF. But hold 5 seconds at each IG ON or OFF state.
  13. If the voltage value measured is not within the specified voltage value, repeat 9-12 procedures until the voltage value is within the specified voltage value.
  14. Check that "Adaption value for the lower mechanical stop of EWGA" is within the specified voltage value.

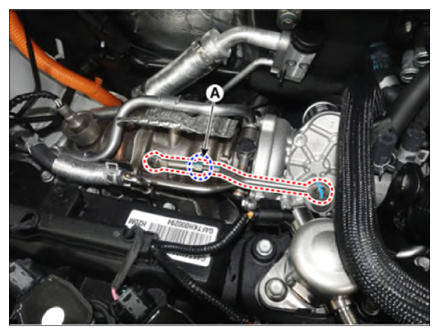

  15. If it is within the specified voltage value, install the retaining ring after tightening the lock nut (A).
    G14957007Courtesy of KIA MOTORS AMERICA, INC.
