Rear Power Window Switch

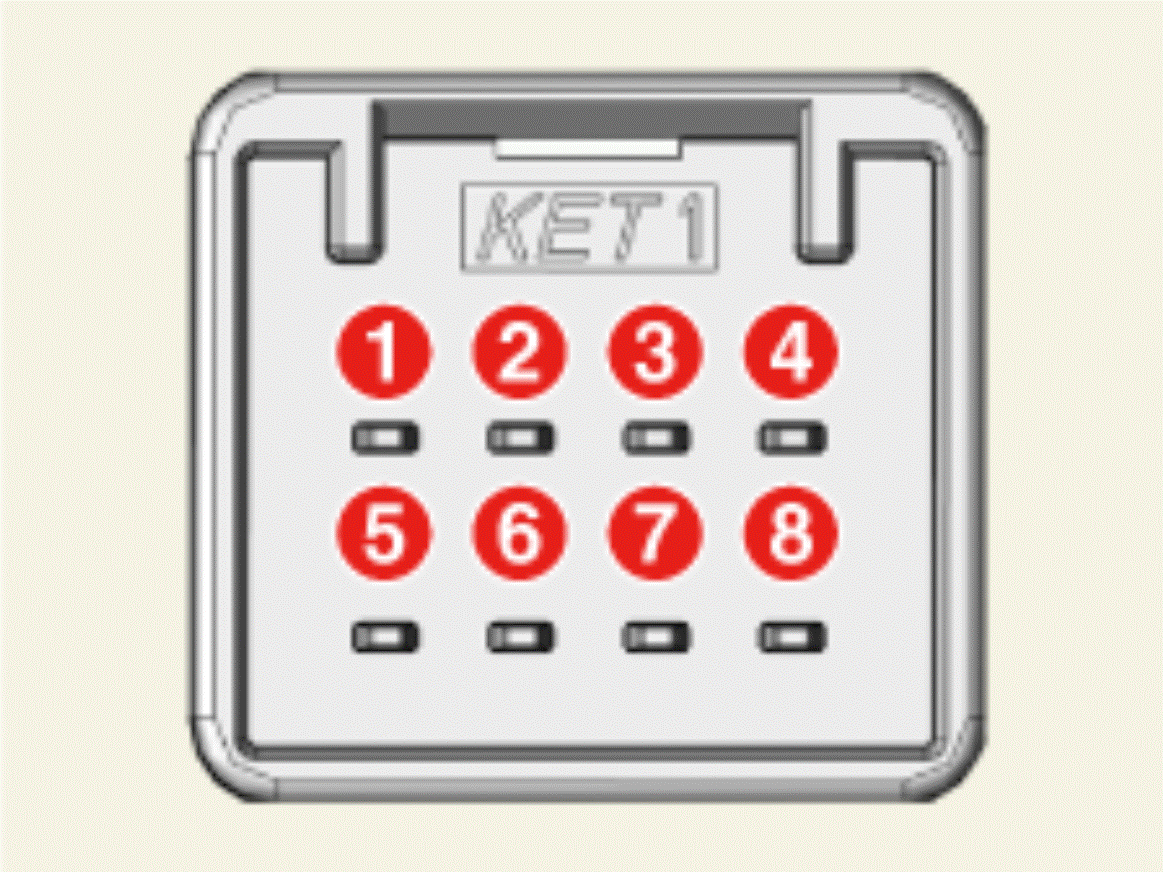

G15710340Courtesy of KIA MOTORS AMERICA, INC.
Pin Function
With Seat Warmer/Air Ventilation Without Seat Warmer/Air Ventilation
1 IG 1 Illumination (-)
2 - -
3 Ground -
4 LIN Illumination (+)
5 Illumination (+) Ground
6 - -
7 Illumination (-) Safety power window switch
8 Safety power window switch -
