Removal & Installation: Removal

  1. Remove the crash pad center garnish [Passenger's side].

    (Refer to Body - "CRASH PAD GARNISH ")

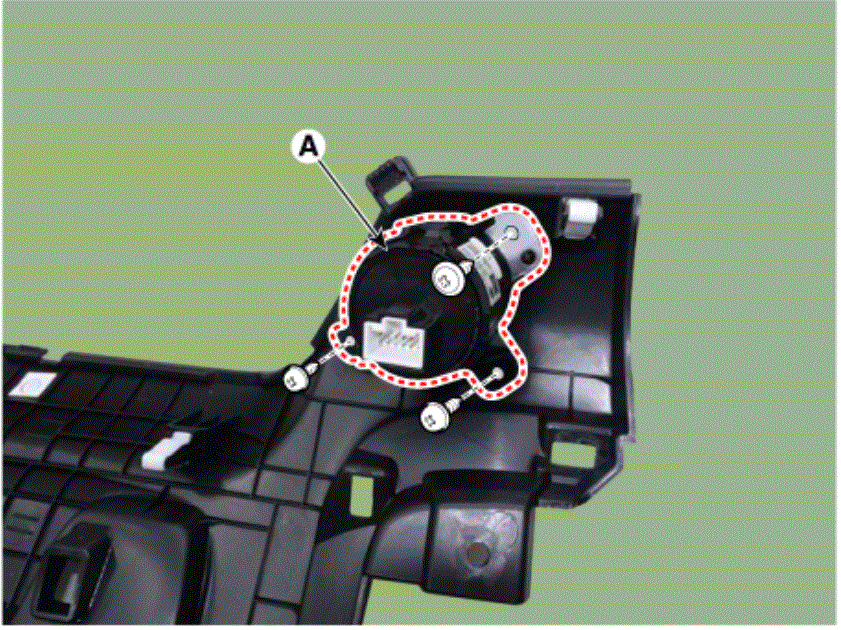

  2. Remove the Start/Stop Button (SSB) (A) after removing the screws.
G15710099Courtesy of KIA MOTORS AMERICA, INC.
