On Vehicle Inspection

Disconnect the battery negative (-) terminal.
Remove the engine cover.
(Refer to Engine Mechanical System - " ENGINE COVER ")
Measure the resistance between terminals after disconnecting the Oil Control Valve (OCV) connector (A).

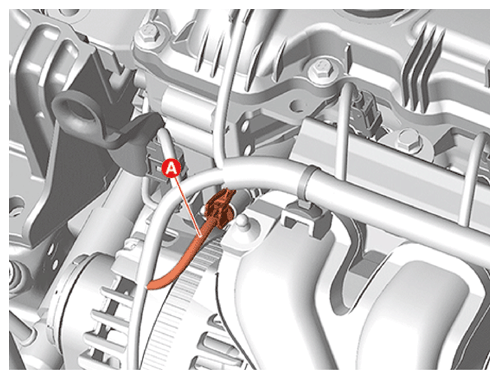

Intake

Courtesy of KIA MOTORS AMERICA, INC.

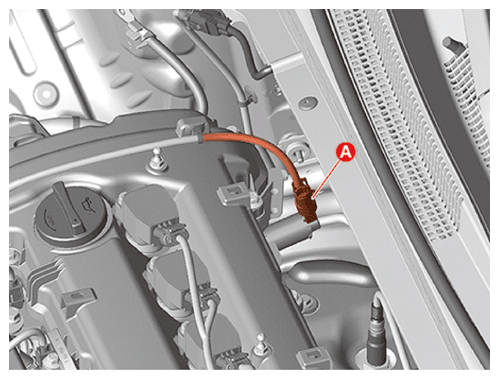

Exhaust

Courtesy of KIA MOTORS AMERICA, INC.

Check that the resistance is within the specification.

Item	Specification
Coil resistance (MΩ)	Minimum 1 [@500 VAC, 20°C (68°F)]
