Removal And Installation: Removal

Disconnect the battery negative (-) terminal.
Drain the coolant.
(Refer to Engine Mechanical System - " COOLANT ")

Courtesy of KIA MOTORS AMERICA, INC.

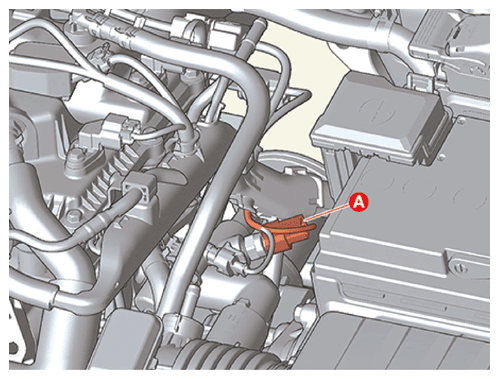

Disconnect the Engine Coolant Temperature Sensor (ECTS) connector (A).

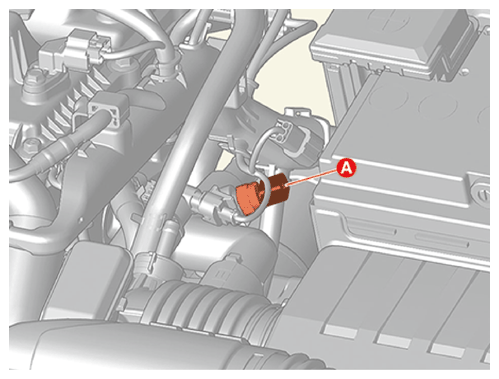

Remove the ECTS (A).
Tightening torque:

19.6 - 39.2 N.m (2.0 - 4.0 kgf.m, 14.5 - 28.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
