Components And Components Location: Specification

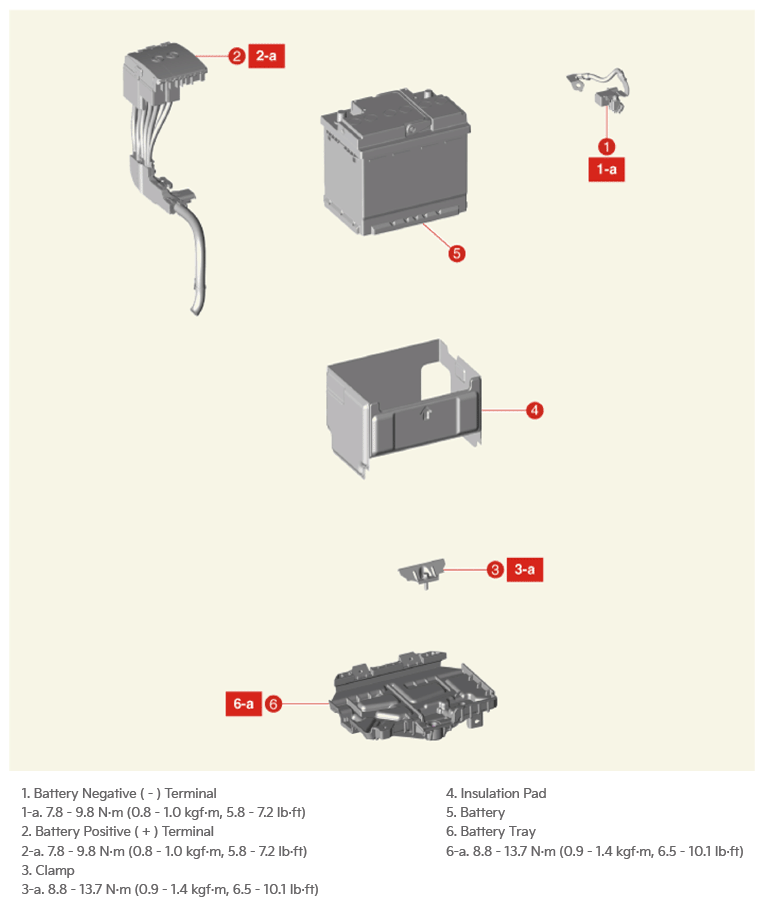

Fig 1: Battery Components Location With Torque Specifications
G16426926Courtesy of KIA MOTORS AMERICA, INC.
