Component Inspection

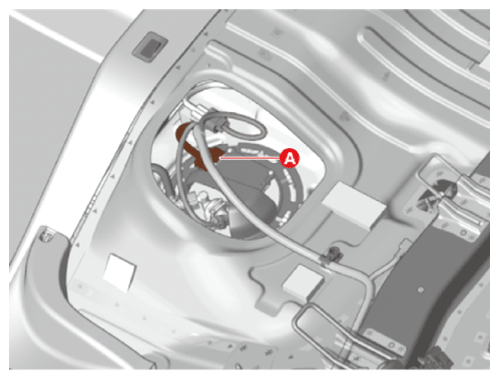

  1. Disconnect the Fuel Pump Control Module (FPCM) connector (A).
    G16423787Courtesy of KIA MOTORS AMERICA, INC.

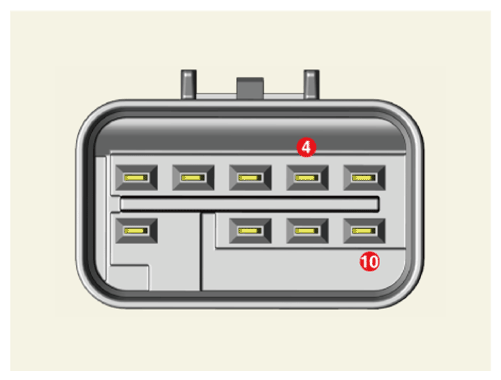

  2. Check fuel pump operation by connecting ground to terminal 4 (-) and power to terminal 10 (+) of connector.
    G16423788Courtesy of KIA MOTORS AMERICA, INC.
    Terminal Function
    4 (-)
    10 (+)
