Removal And Installation: Installation

  1. Install in reverse order of removal.
    NOTE:
    • Install the spark plug to the specified torque.
    • Be careful not to damage the electrode when installing the spark plug.
    • If the spark plug is dropped, it may cause internal damage. (Do not reuse)

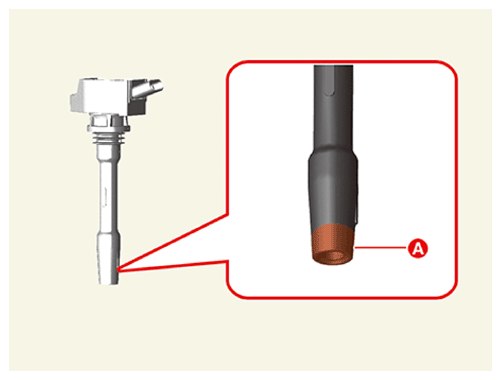

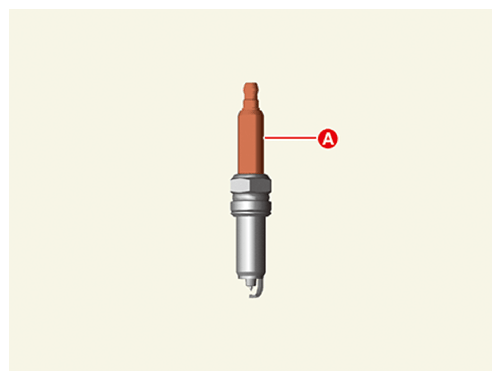

    • When installing the parts, use cloth to clean the contaminated area (A).
      • Use a clean and soft cloth to avoid damage.

        (When replacing ignition coil and spark plug together, cleaning is not required.)

        G16426967Courtesy of KIA MOTORS AMERICA, INC.
        G16426968Courtesy of KIA MOTORS AMERICA, INC.
