Components And Components Location: Installation: Installation

  1. Checking shift lever and the manual control lever are in the N range before installation.

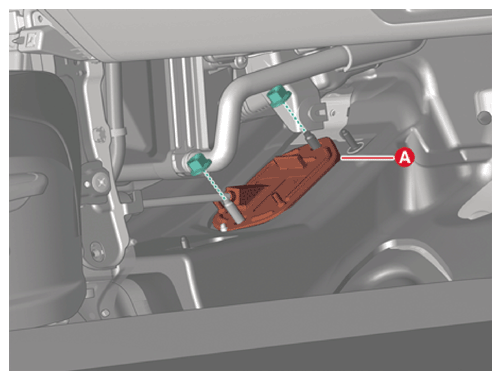

  2. Install the shift cable retainer (A).

    Tightening torque:

    11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb.ft)

    G16424191Courtesy of KIA MOTORS AMERICA, INC.

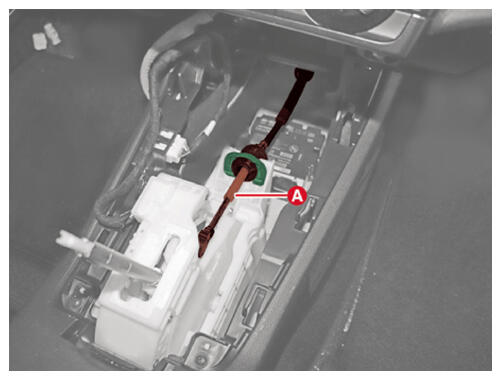

  3. Install the shift cable (A) to the shift lever.
    G16424192Courtesy of KIA MOTORS AMERICA, INC.

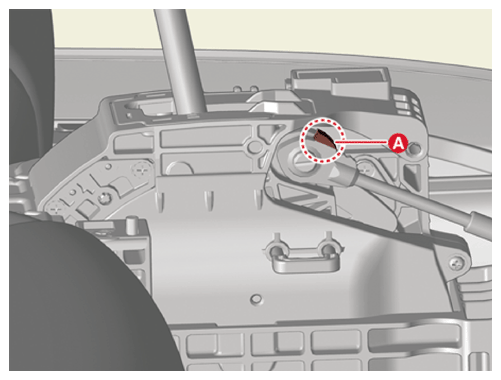

    NOTE: Install the shift cable after checking the direction of tab (A) to prevent incorrect assembly.
    G16424193Courtesy of KIA MOTORS AMERICA, INC.

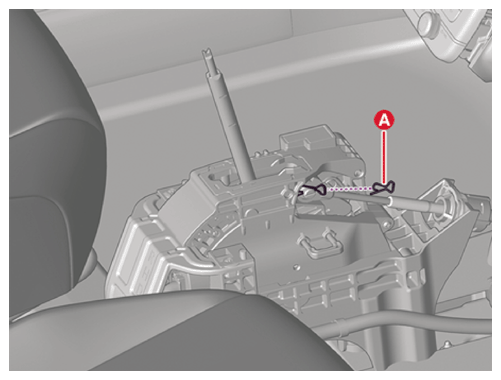

  4. Insert the snap pin (A).
    G16424194Courtesy of KIA MOTORS AMERICA, INC.

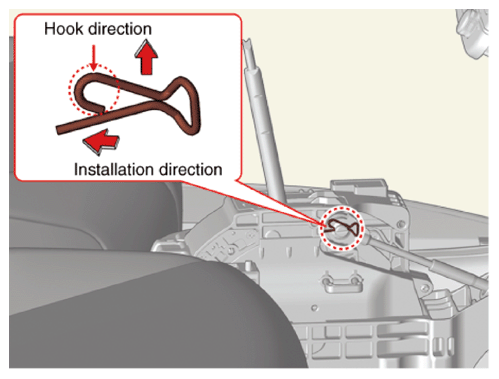

    NOTE: Mind the installation direction of snap pin and install the snap pin with the hook facing upward.
    G16424195Courtesy of KIA MOTORS AMERICA, INC.

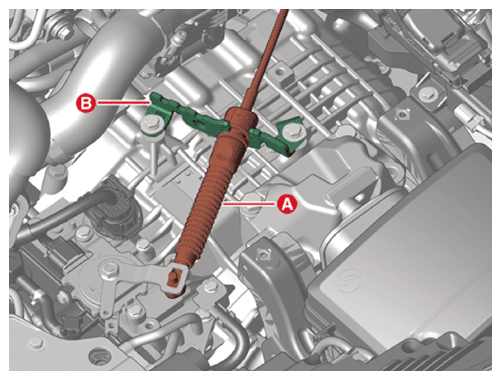

  5. Install the shift cable (A) to the bracket (B).
    G16424196Courtesy of KIA MOTORS AMERICA, INC.

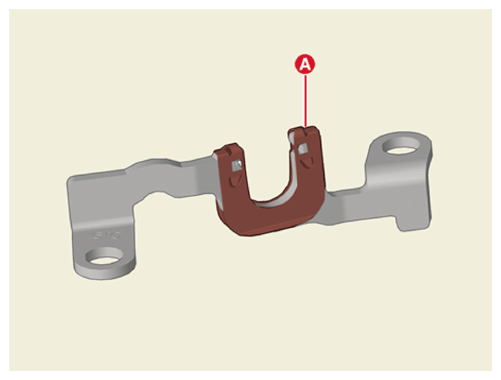

    NOTE: Replace the shift cable bracket clip (A) with a new one.
    G16424197Courtesy of KIA MOTORS AMERICA, INC.

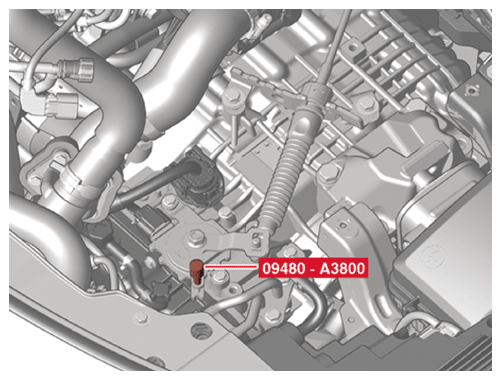

  6. Align the hole in the manual control lever with the N position hole of the position switch and then insert the SST (09480 - A3800).
    G16424198Courtesy of KIA MOTORS AMERICA, INC.

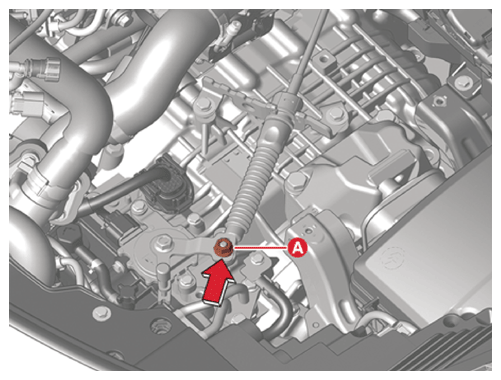

  7. Tighten the nut (A) to the specified torque after removing free play by pushing the shift cable in the direction of the arrow.

    Tightening torque:

    9.8 - 13.7 N.m (1.0 - 1.4 kgf.m, 7.2 - 10.1 lb.ft)

    G16424199Courtesy of KIA MOTORS AMERICA, INC.

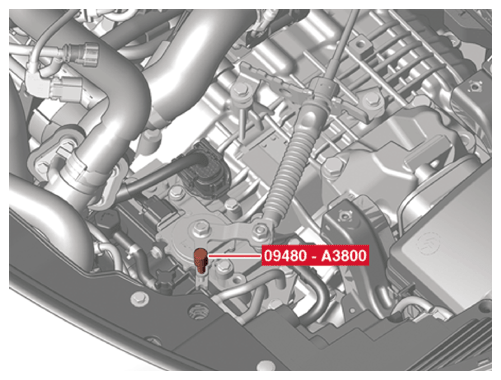

  8. Remove the SST (09480 - A3800).
    G16424200Courtesy of KIA MOTORS AMERICA, INC.
  9. Install the console upper cover.

    (Refer to Body - " CONSOLE UPPER COVER  ")

  10. Install the battery and battery tray.

    (Refer to Engine Electrical System - " BATTERY  ")

  11. Install the air cleaner assembly.

    (Refer to Engine Mechanical System - " AIR CLEANER  ")

  12. Check for correct operation at each range of the inhibitor switch corresponding to each position of shift lever.
