Removal And Installation: Removal

NOTE:

Maintain clean condition so that foreign substance does not get into the Intelligent Variable Transmission (IVT).
Use a coated apron, latex gloves, and stainless tray to prevent foreign substance.
Intelligent Variable Transmission (IVT) is composed of delicate components. Be careful not to cause any damage on the component when assembling and disassembling.

Remove the valve body assembly.
(Refer to Hydraulic System - " VALVE BODY ")

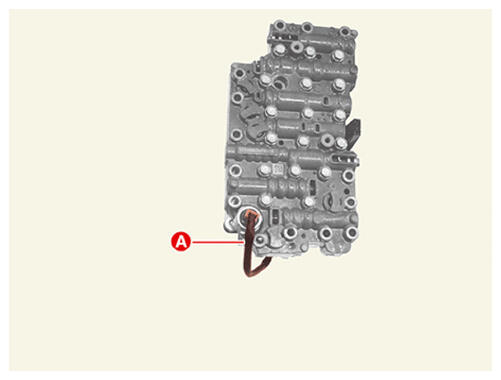

Disconnect the pressure sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

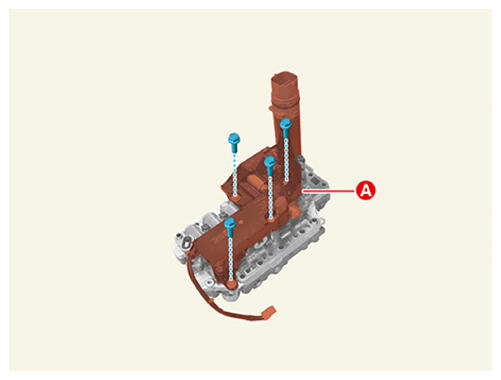

Remove the E-Module (A) after removing the bolts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
