Components And Components Location: Component

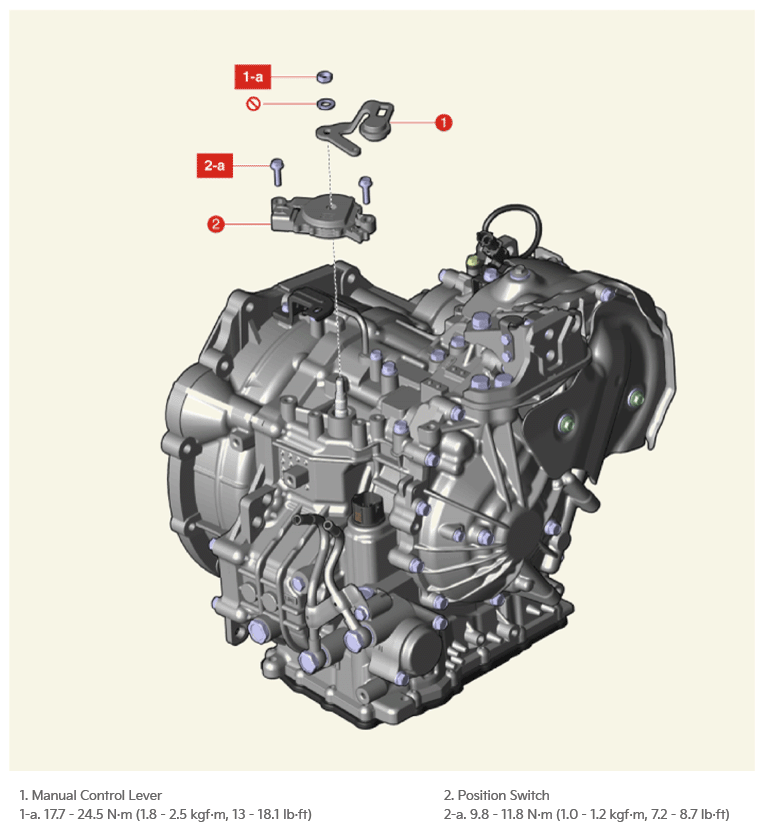

Fig 1: Position Switch Components Location With Torque Specifications
G16427307Courtesy of KIA MOTORS AMERICA, INC.
