Cylinder Block Side

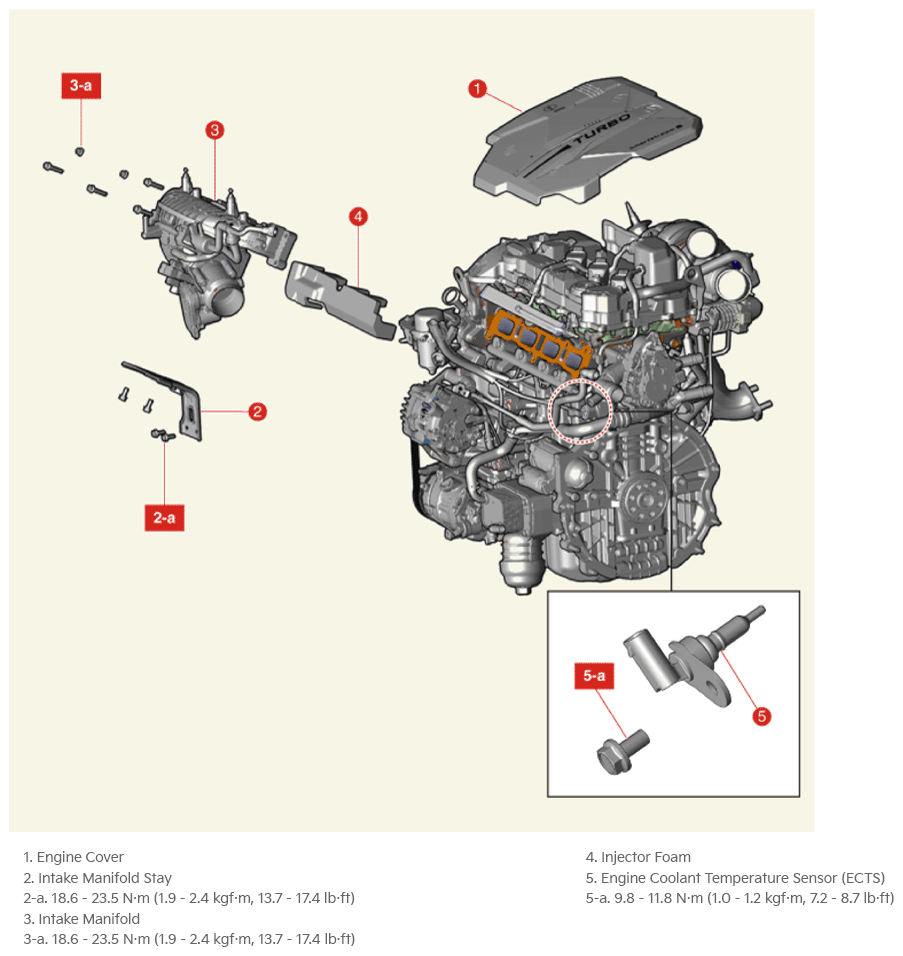

Fig 1: Engine Coolant Temperature Sensor Components Location With Torque Specification - Cylinder Block Side
G16515951Courtesy of KIA MOTORS AMERICA, INC.
