Components Location: Intake

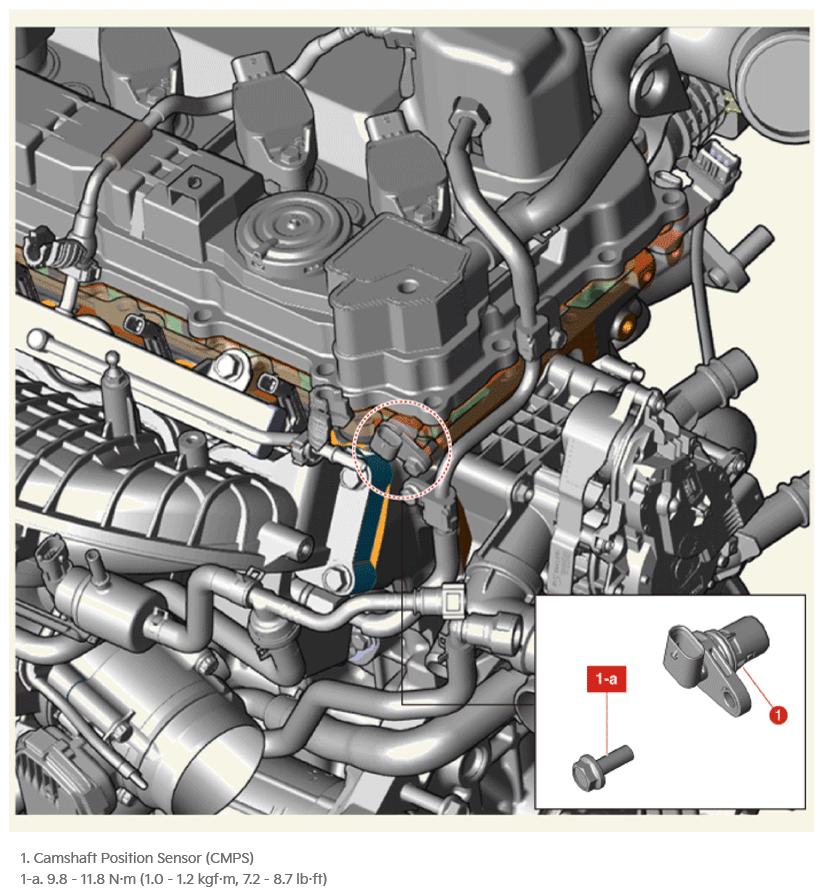

Fig 1: Intake Camshaft Position Sensor Components Location With Torque Specification
G16515880Courtesy of KIA MOTORS AMERICA, INC.
