Components Location

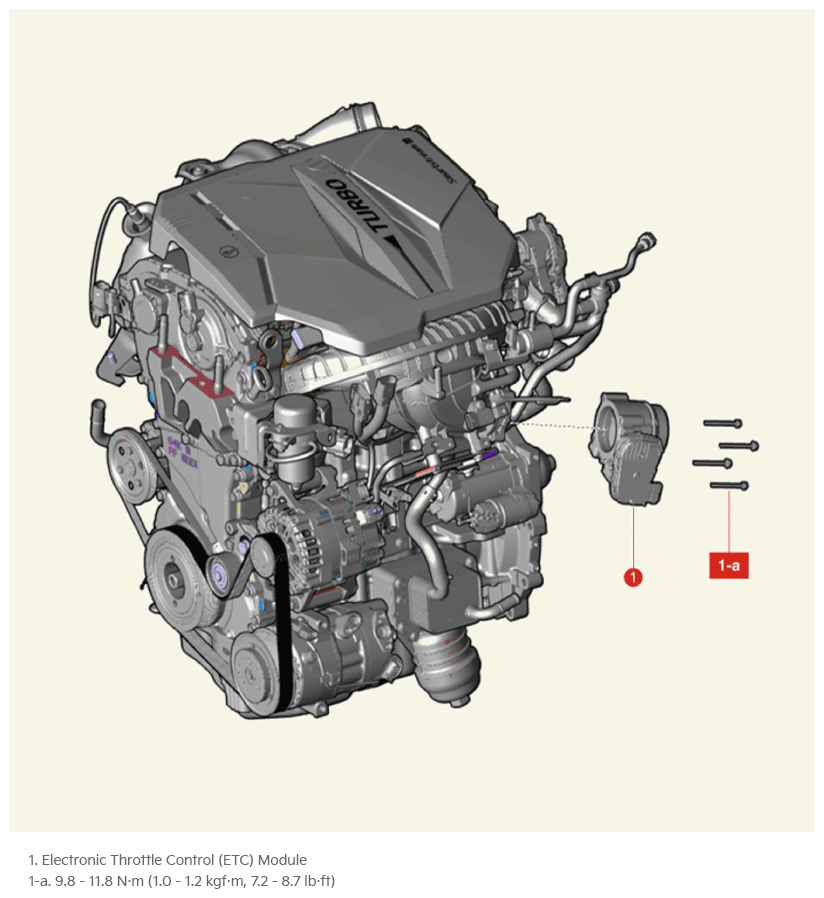

Fig 1: Electronic Throttle Control System Components Location With Torque Specification
G16515962Courtesy of KIA MOTORS AMERICA, INC.
