Components Location

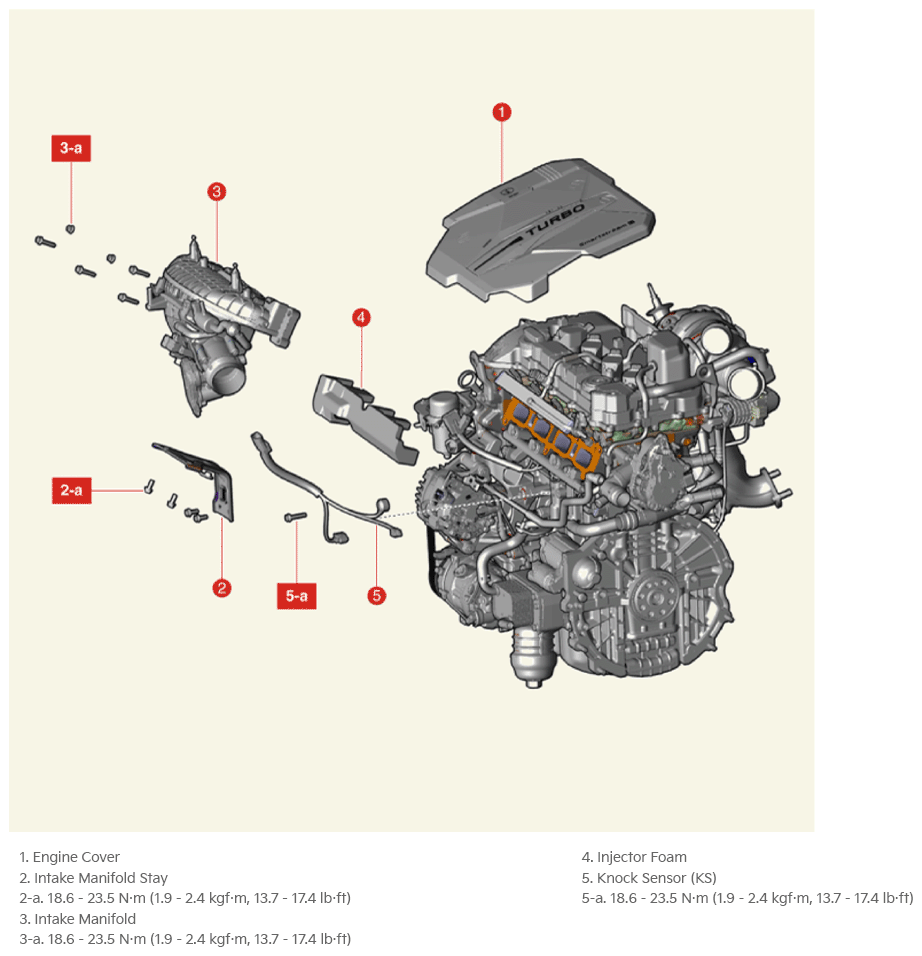

Fig 1: Knock Sensor Components Location With Torque Specification
G16515983Courtesy of KIA MOTORS AMERICA, INC.
