Circuit Inspection

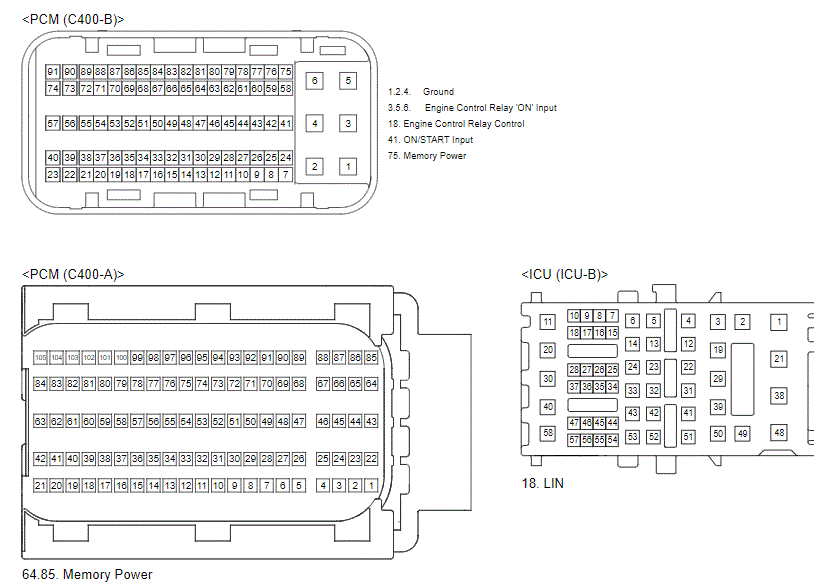

| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

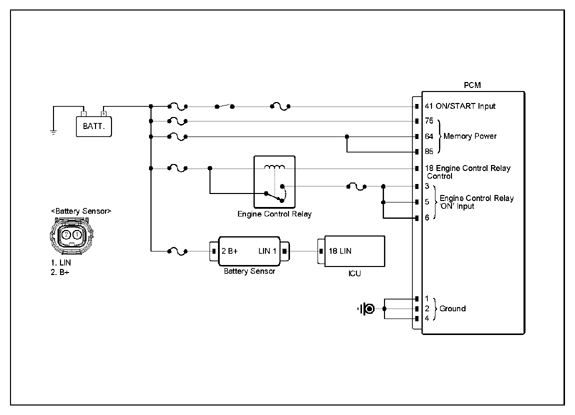

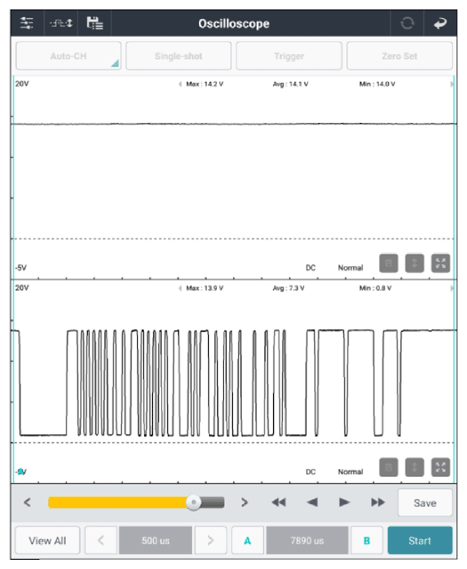

Battery sensor connector | 2 (power) | Chassis ground | - | Fig. 1 |
| Battery sensor connector | 1 (LIN) | Chassis ground | - | ||
Good
- Go to "Verification Of Repair " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the battery sensor and Go to "Verification Of Repair " procedure.
