Components And Components Location: Components

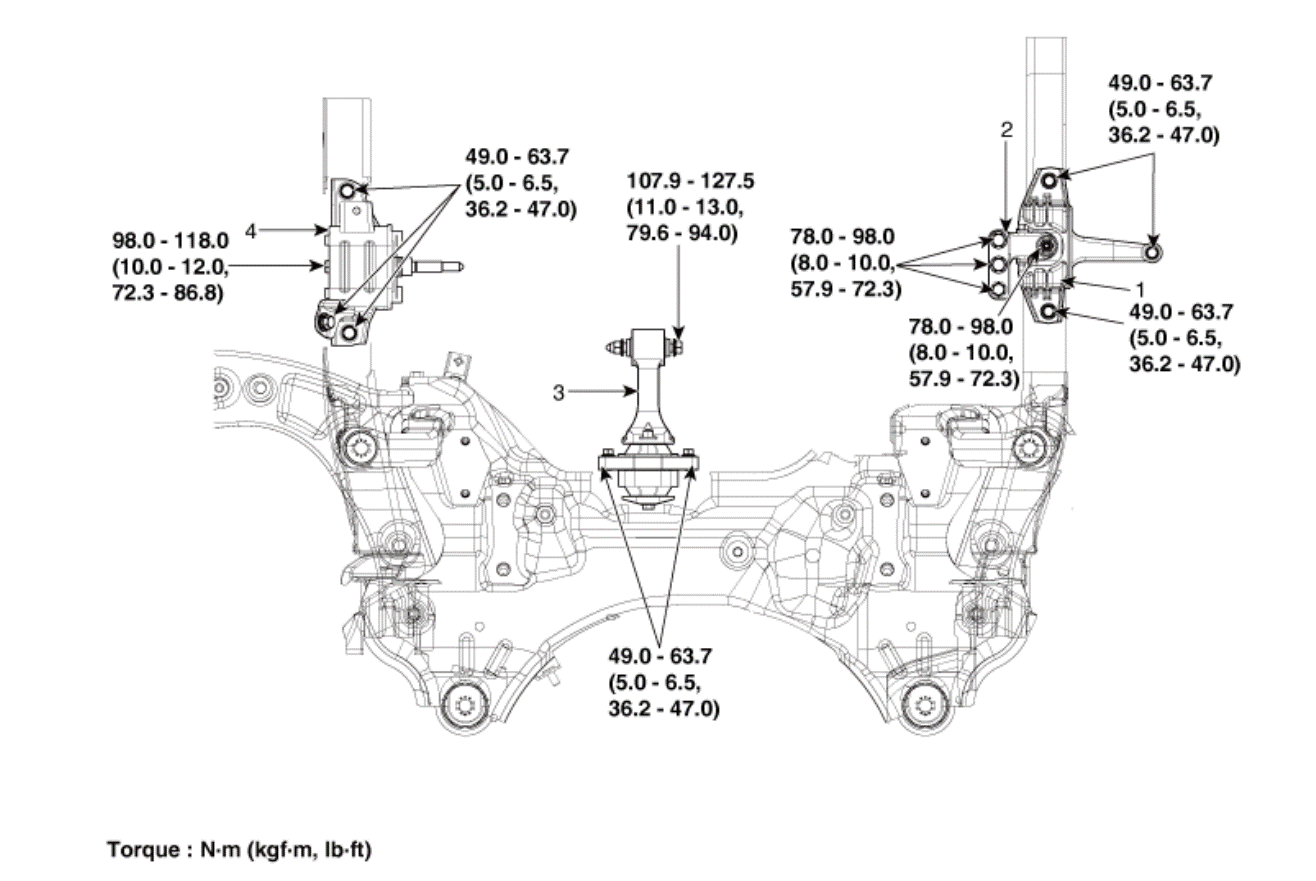

Fig 1: Engine Mounting Components Location With Torque Specifications
G15694210Courtesy of KIA MOTORS AMERICA, INC.
