Occupant Detection System (ODS) Unit

  1. Disconnect the battery negative terminal.
    NOTE: After disconnecting the cables, wait at least 30 seconds.
  2. Remove the passenger seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

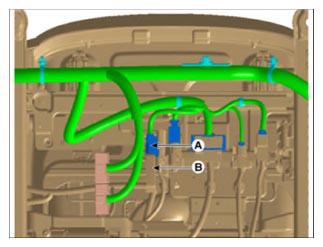

  3. Disconnect the connector (A) and then remove the Occupant Detection System [ODS] (B) after loosening the mounting screws.
G15715072Courtesy of KIA MOTORS AMERICA, INC.
