Power Steering System Test

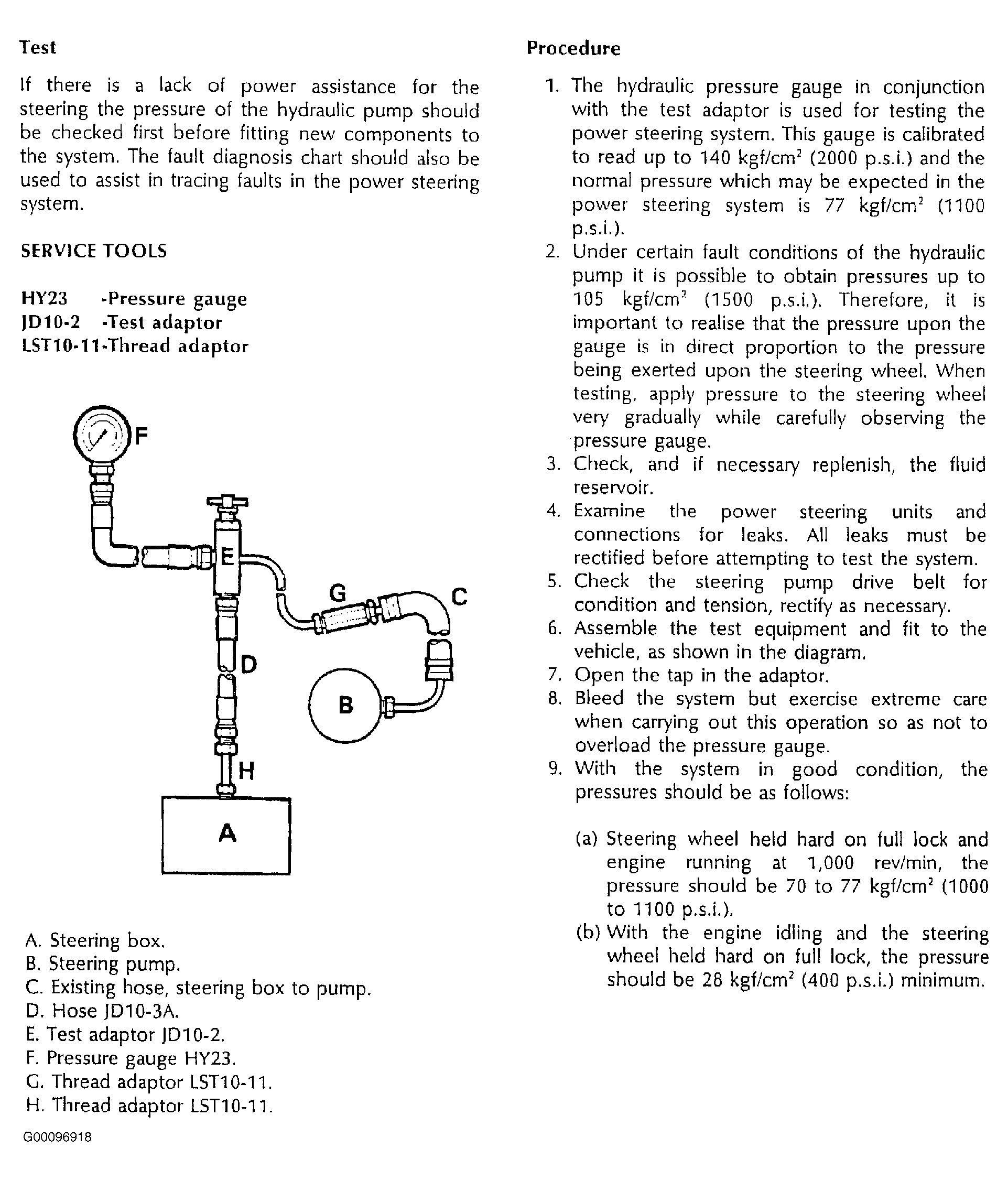

Fig 1: Testing Power Steering System (1 of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.

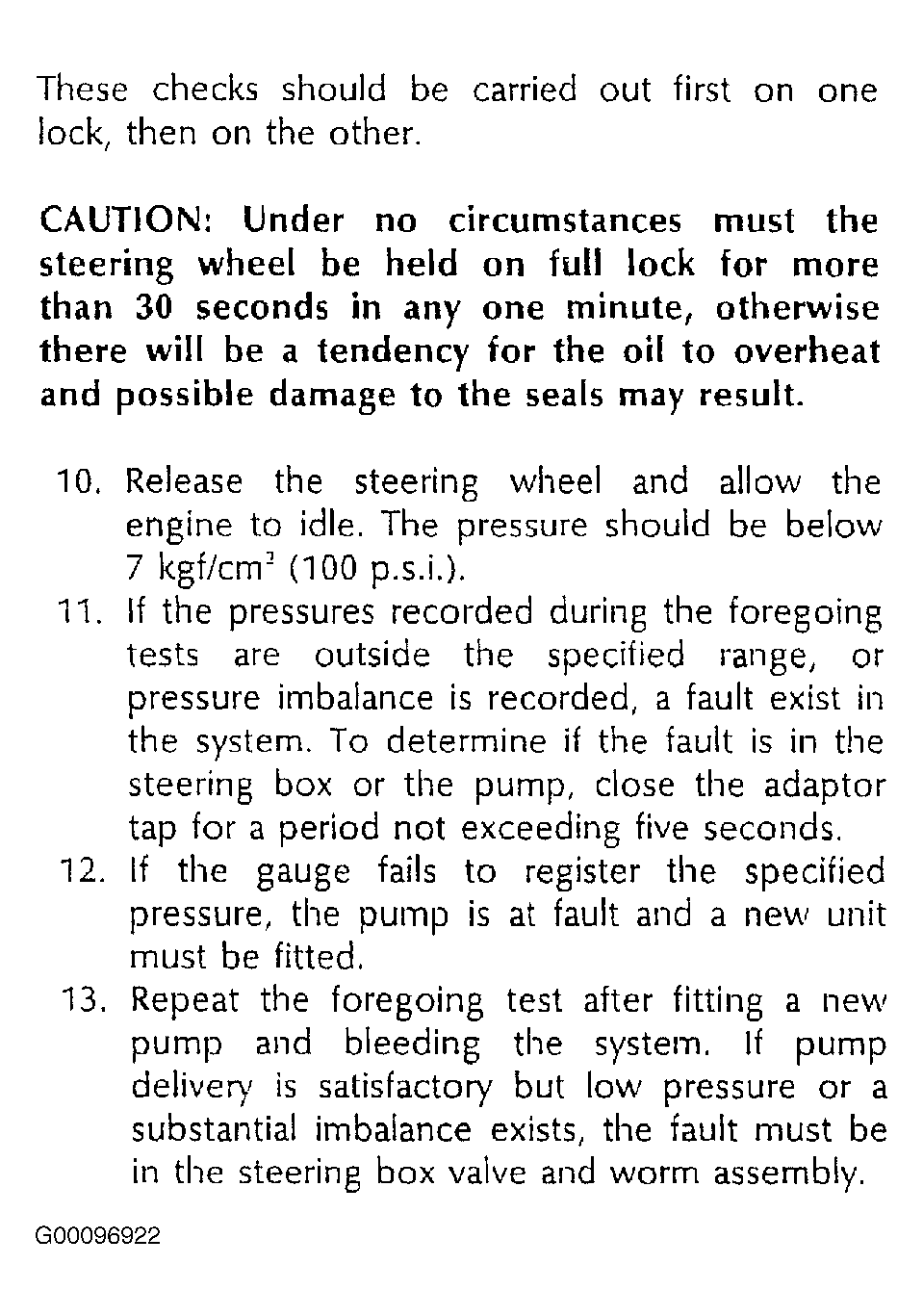

Fig 2: Testing Power Steering System (2 of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
