Engine Torque Specifications

Engine Torque Specifications

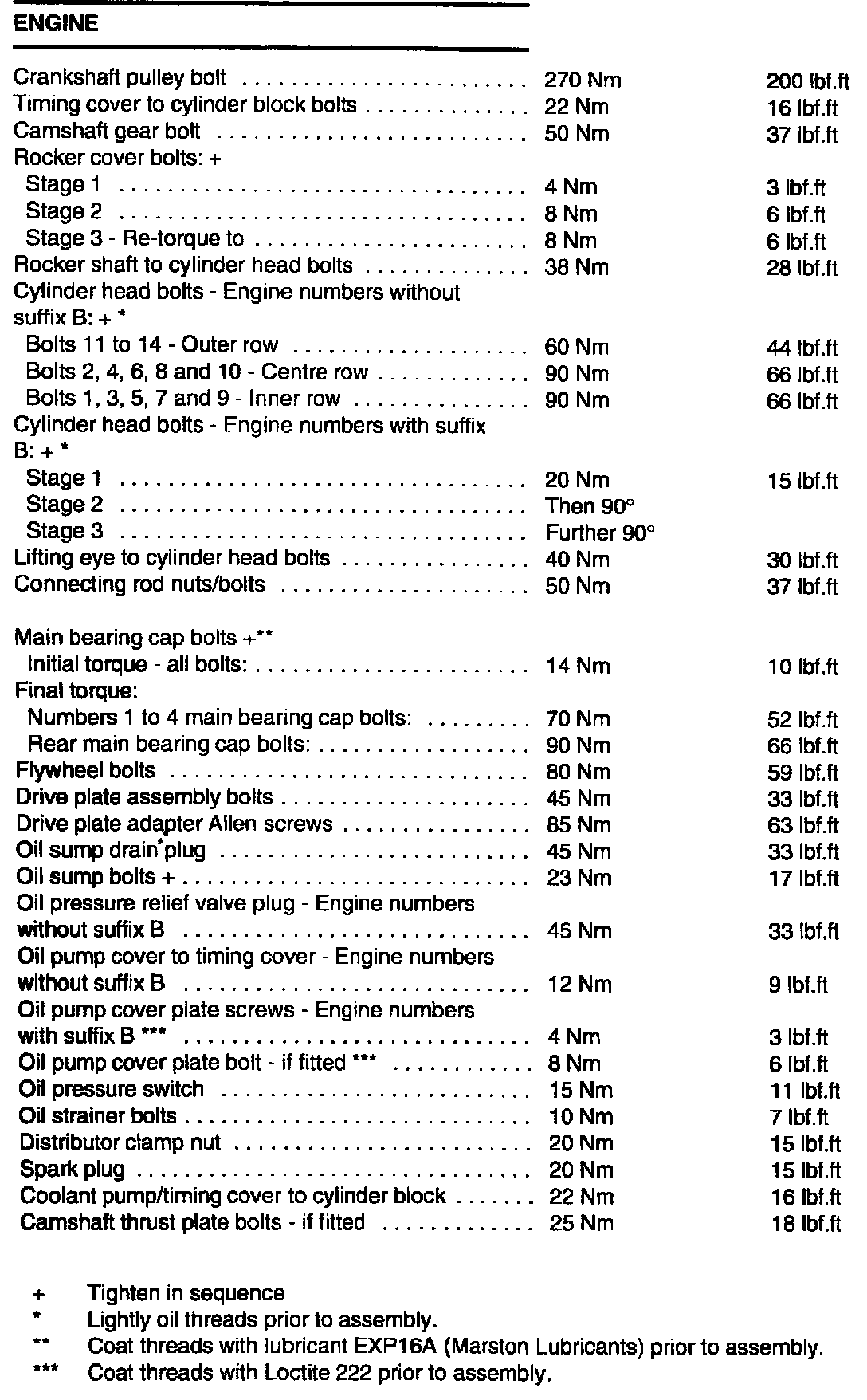

Torque Specifications:

General Torque Specifications:

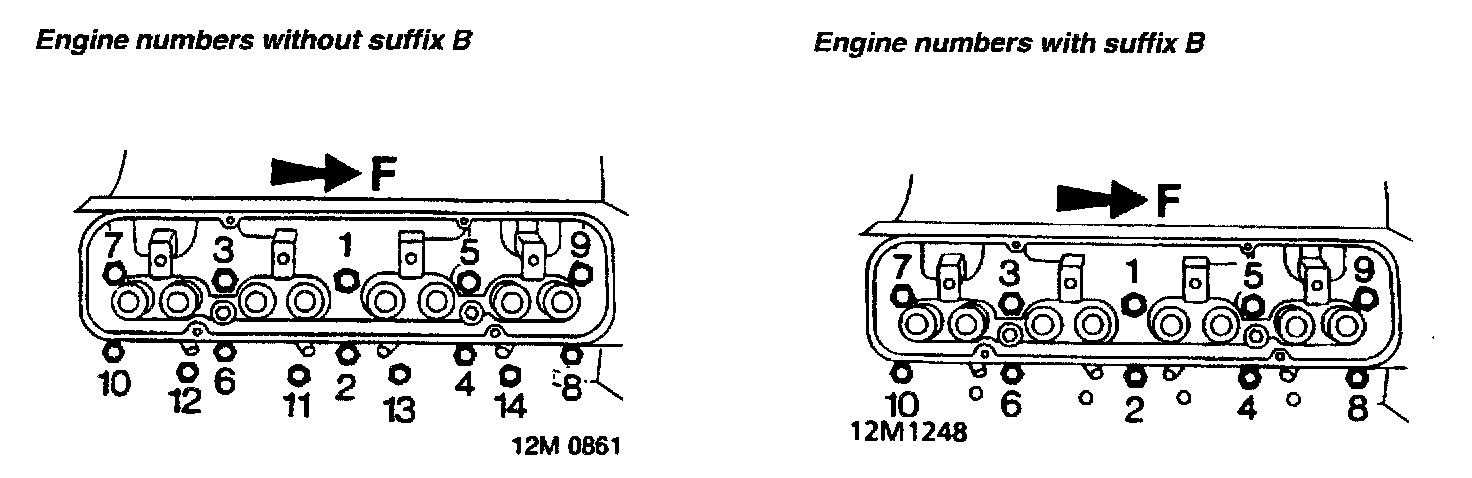

Cylinder Head Torque Sequence:

Suffix B engines began with VIN numbers LH 647645 - LJ 081992 and LD 939976 Refer to "Engine : Application and ID : Engine Serial Numbers" Application and ID

Note: No bolts are fitted in the four lower holes in each cylinder head on suffix B engines.
