Test Procedures (Using A Multi-Meter)

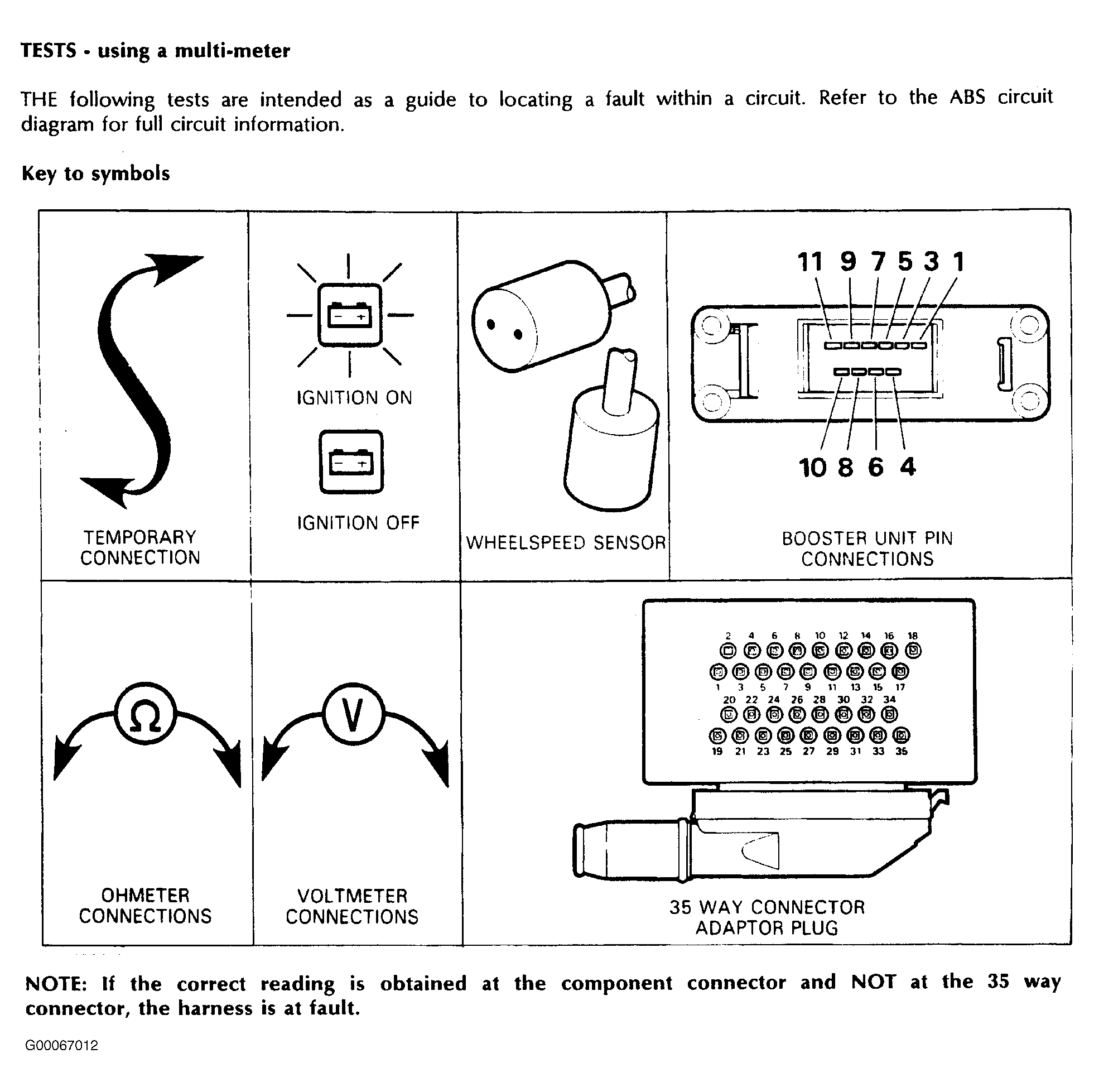

Fig 1: Test Symbols

G00067012

Courtesy of LAND ROVER NORTH AMERICA, INC.

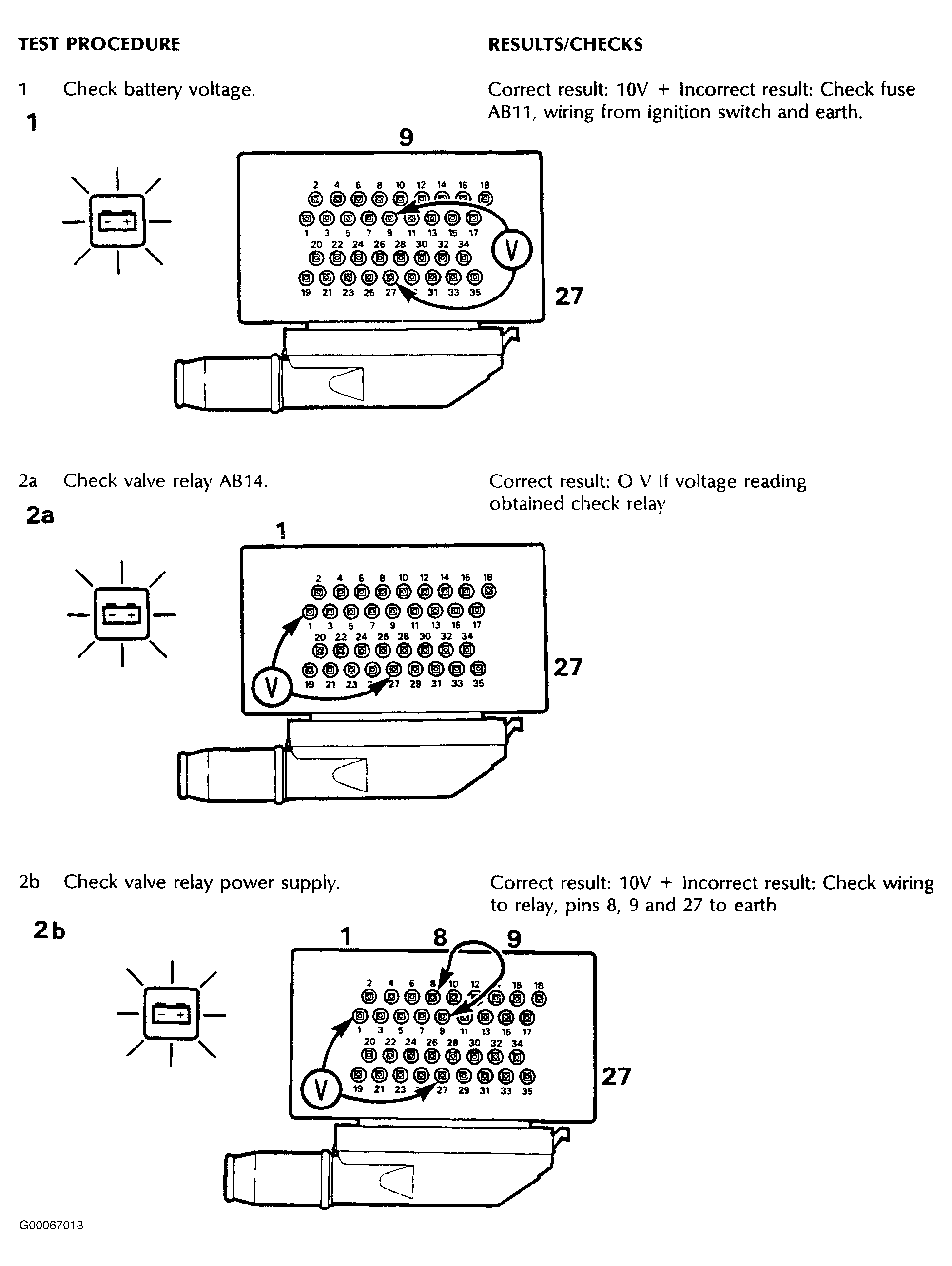

Fig 2: Test Procedure - Steps 1-2B (1 Of 9)

G00067013

Courtesy of LAND ROVER NORTH AMERICA, INC.

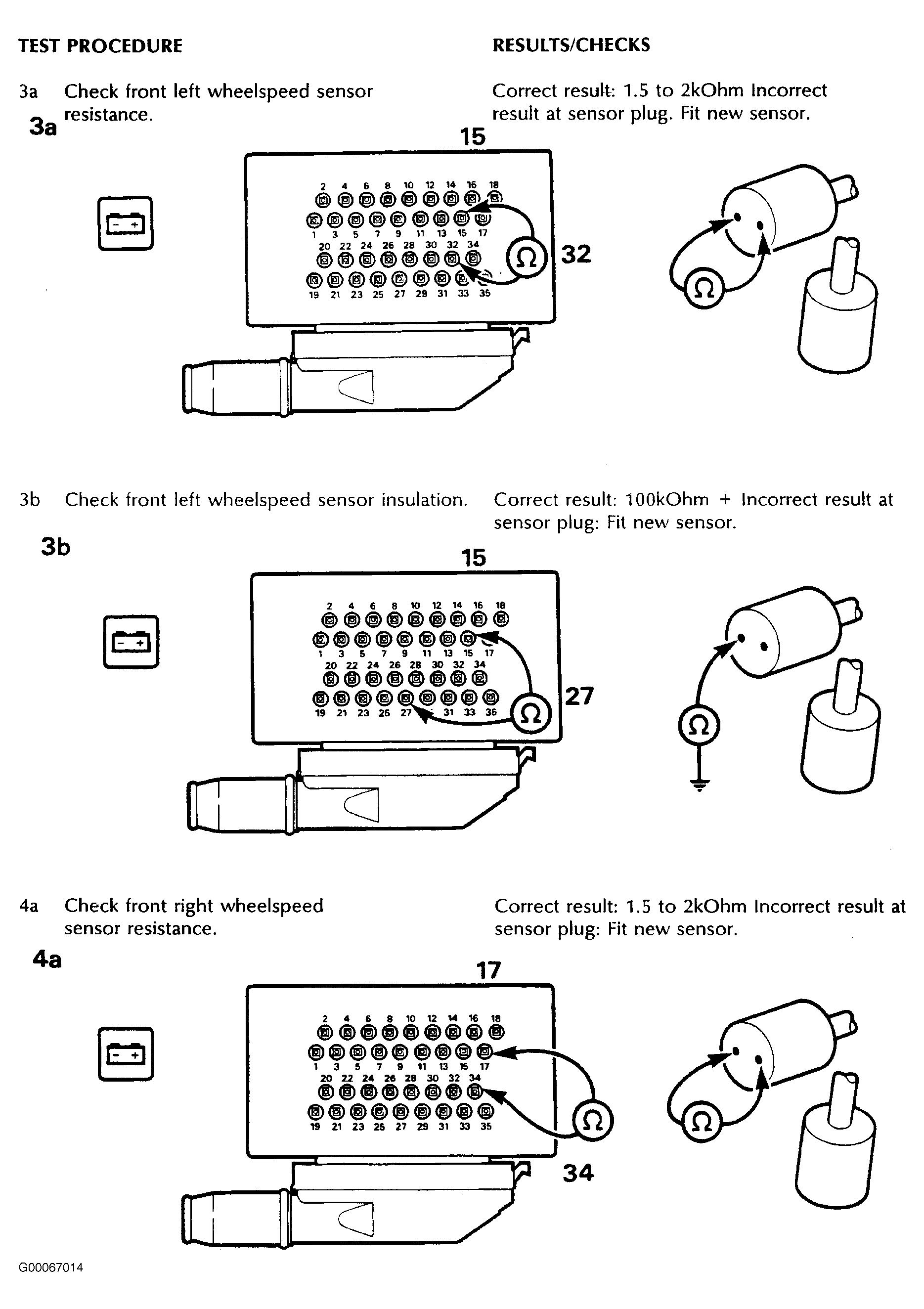

Fig 3: Test Procedure - Steps 3A-4A (2 Of 9)

G00067014

Courtesy of LAND ROVER NORTH AMERICA, INC.

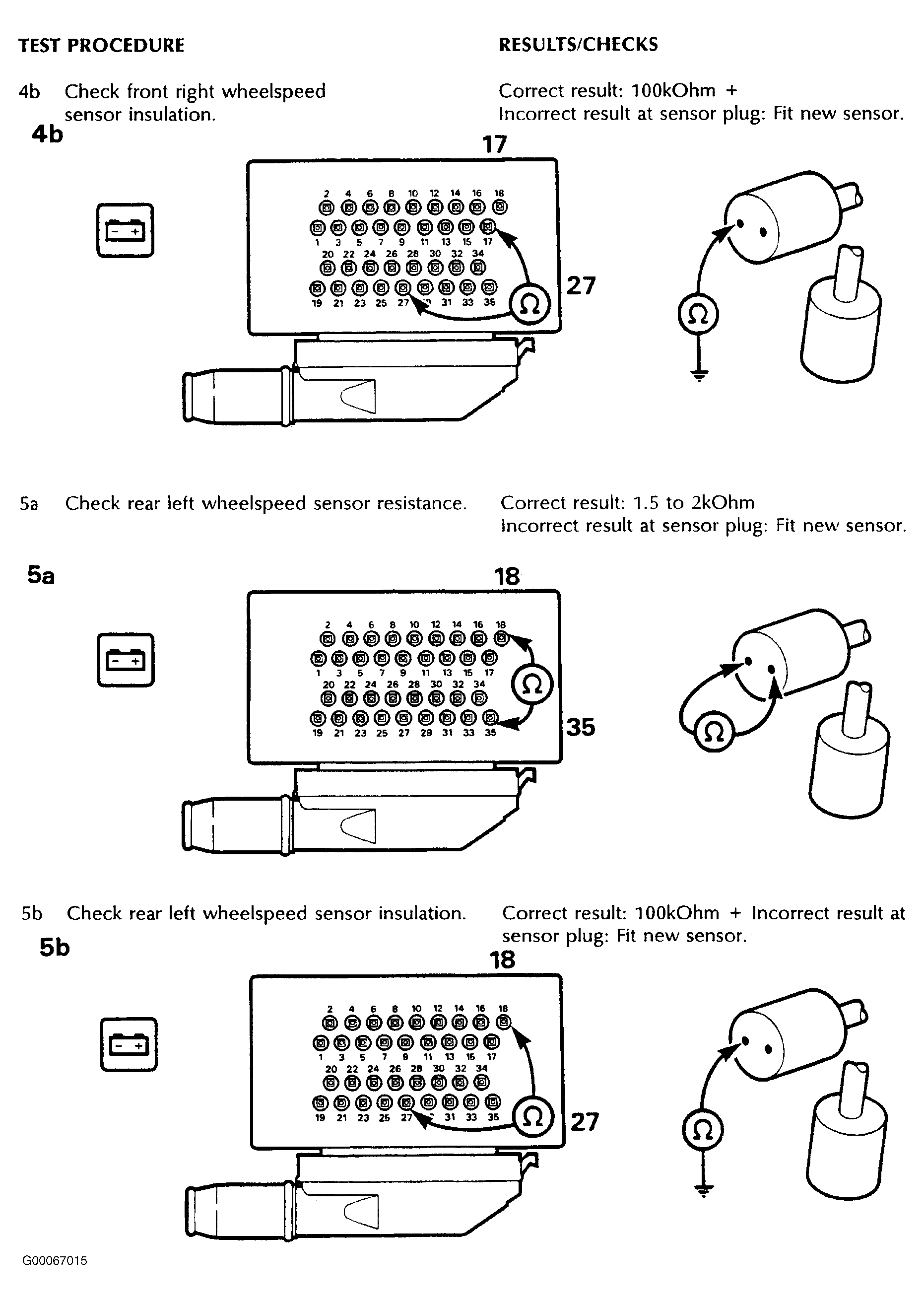

Fig 4: Test Procedure - 4B-5B (3 Of 9)

G00067015

Courtesy of LAND ROVER NORTH AMERICA, INC.

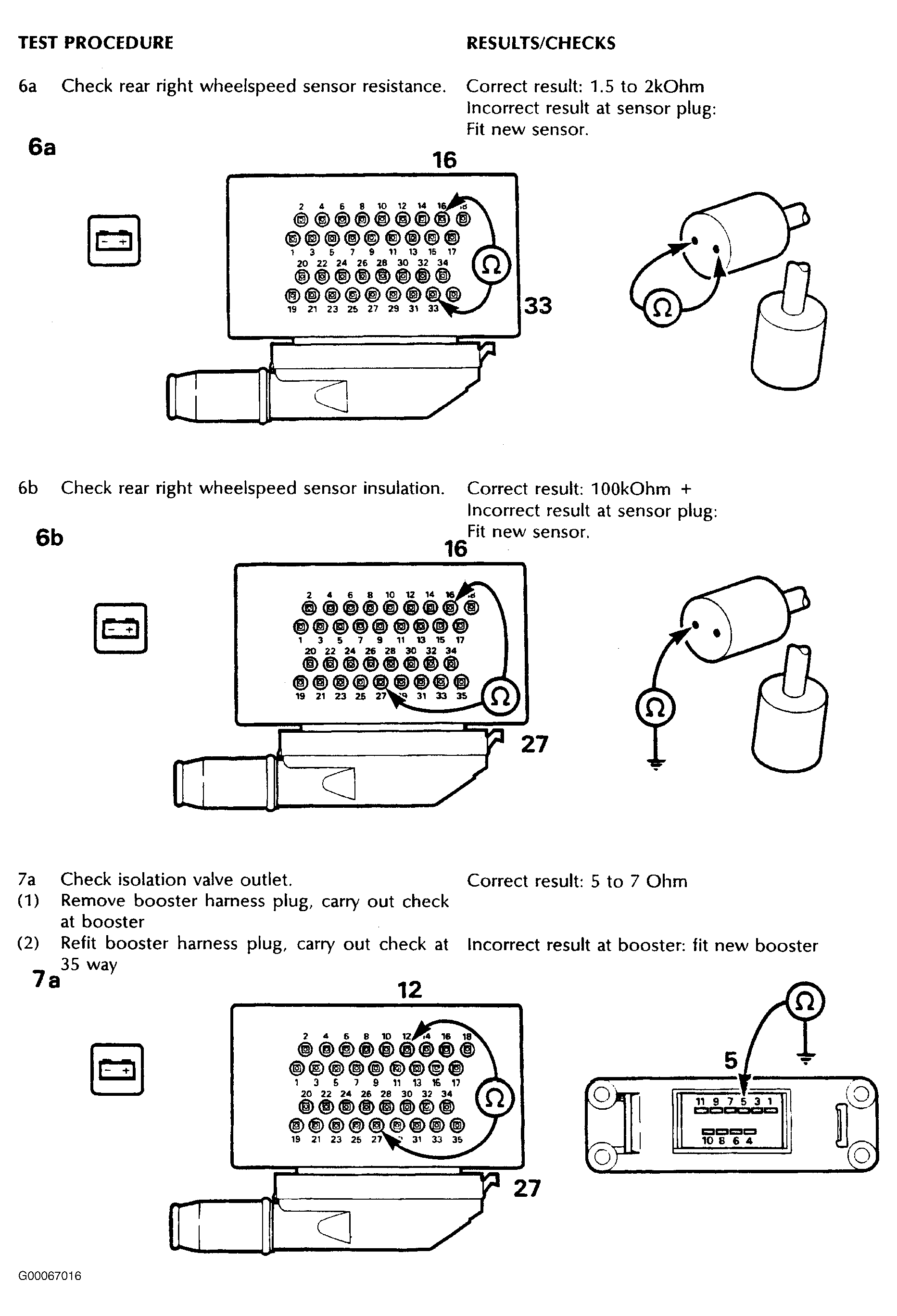

Fig 5: Test Procedure - Steps 6A-7A (4 Of 9)

G00067016

Courtesy of LAND ROVER NORTH AMERICA, INC.

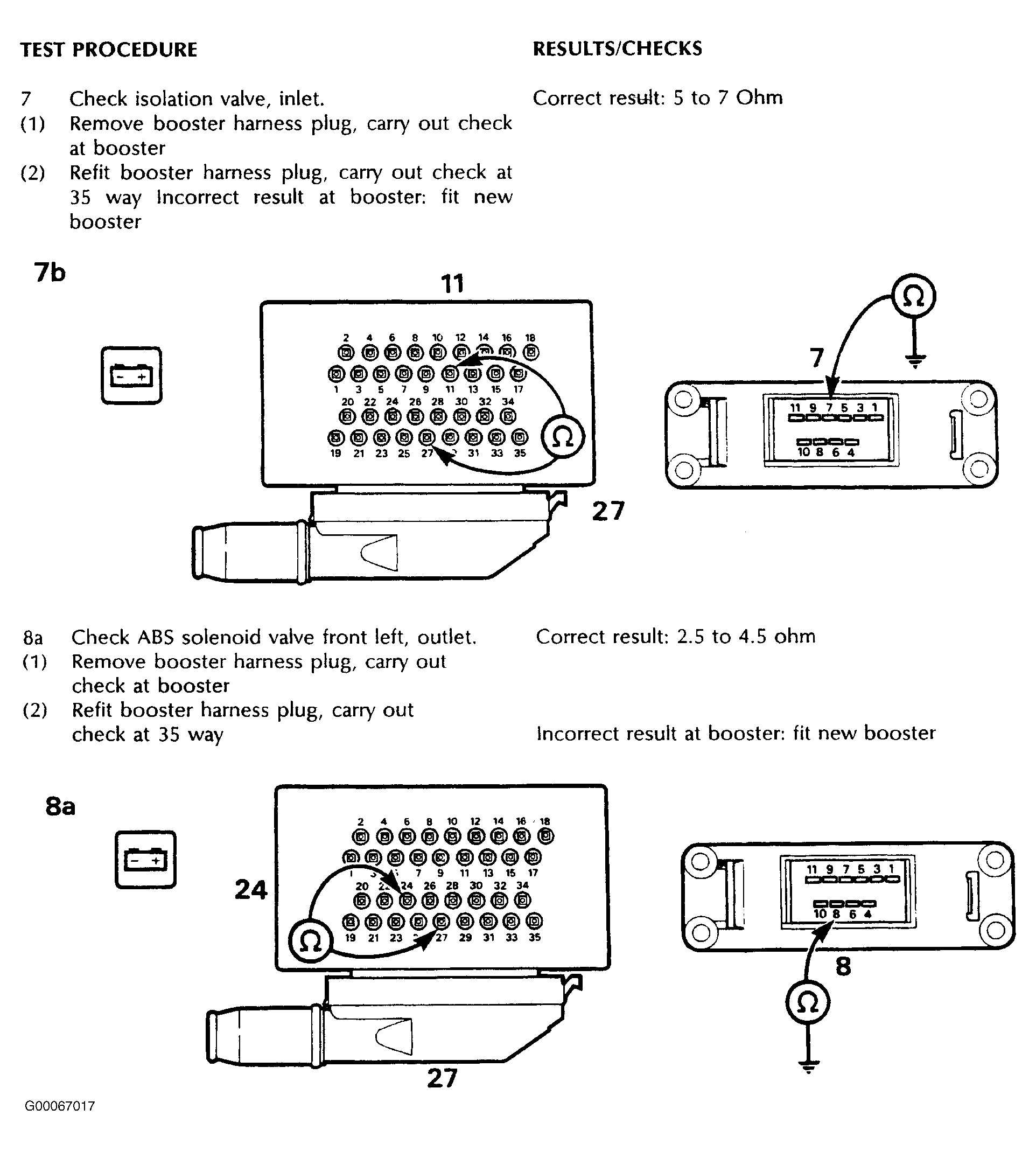

Fig 6: Test Procedure - Steps 7B-8A (5 Of 9)

G00067017

Courtesy of LAND ROVER NORTH AMERICA, INC.

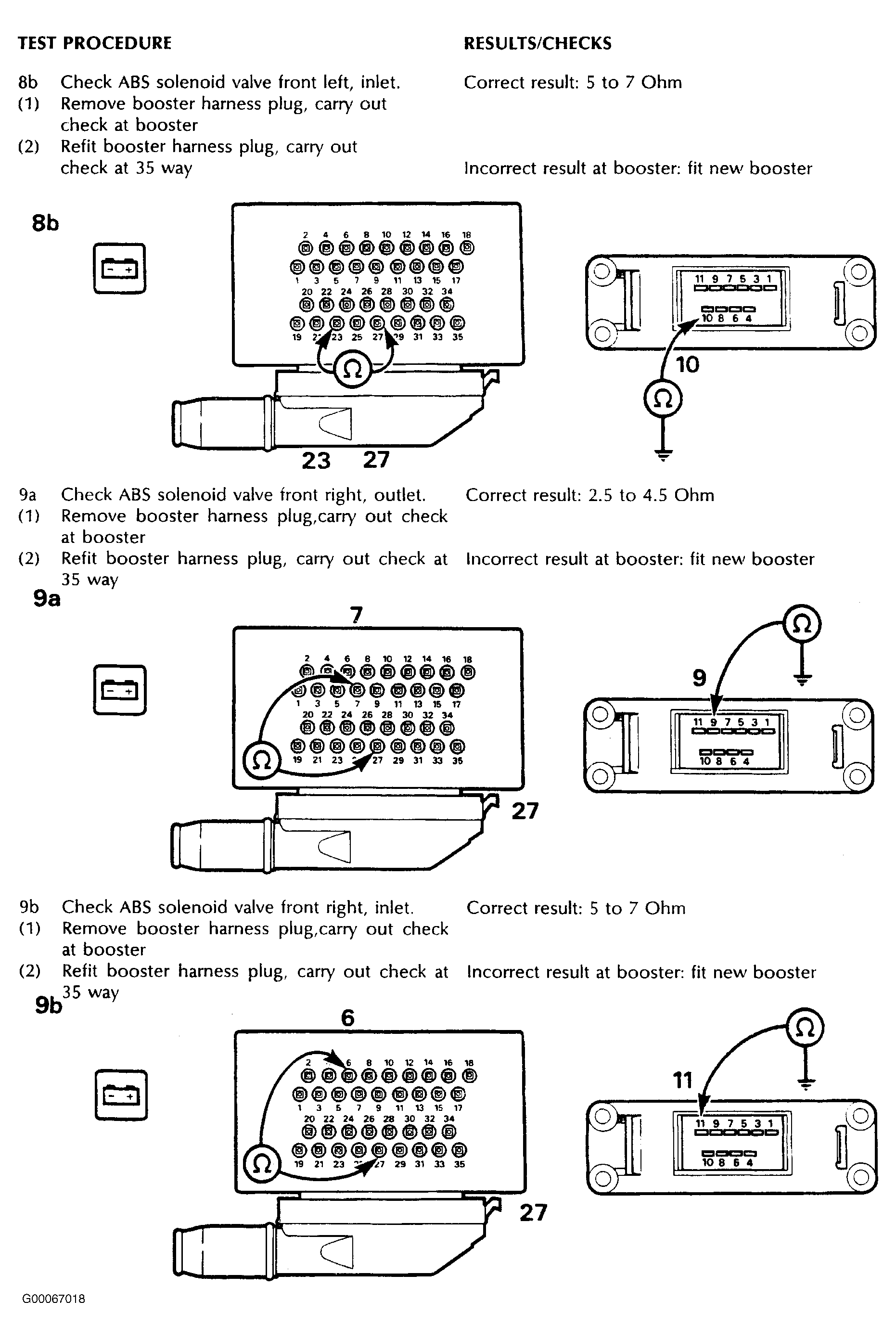

Fig 7: Test Procedure - Steps 8B-9B (6 Of 9)

G00067018

Courtesy of LAND ROVER NORTH AMERICA, INC.

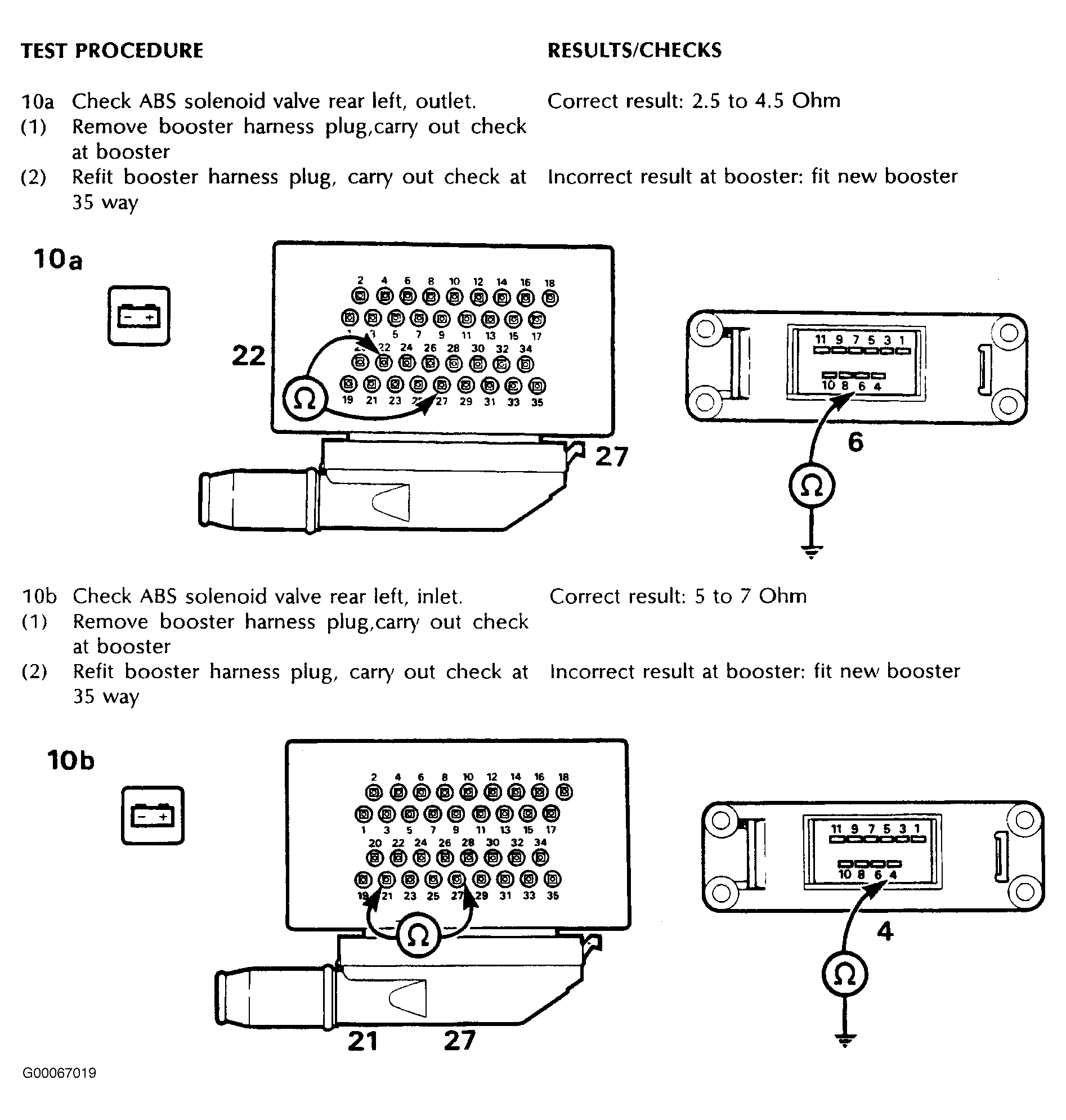

Fig 8: Test Procedure - Steps 10A-10B (7 Of 9)

G00067019

Courtesy of LAND ROVER NORTH AMERICA, INC.

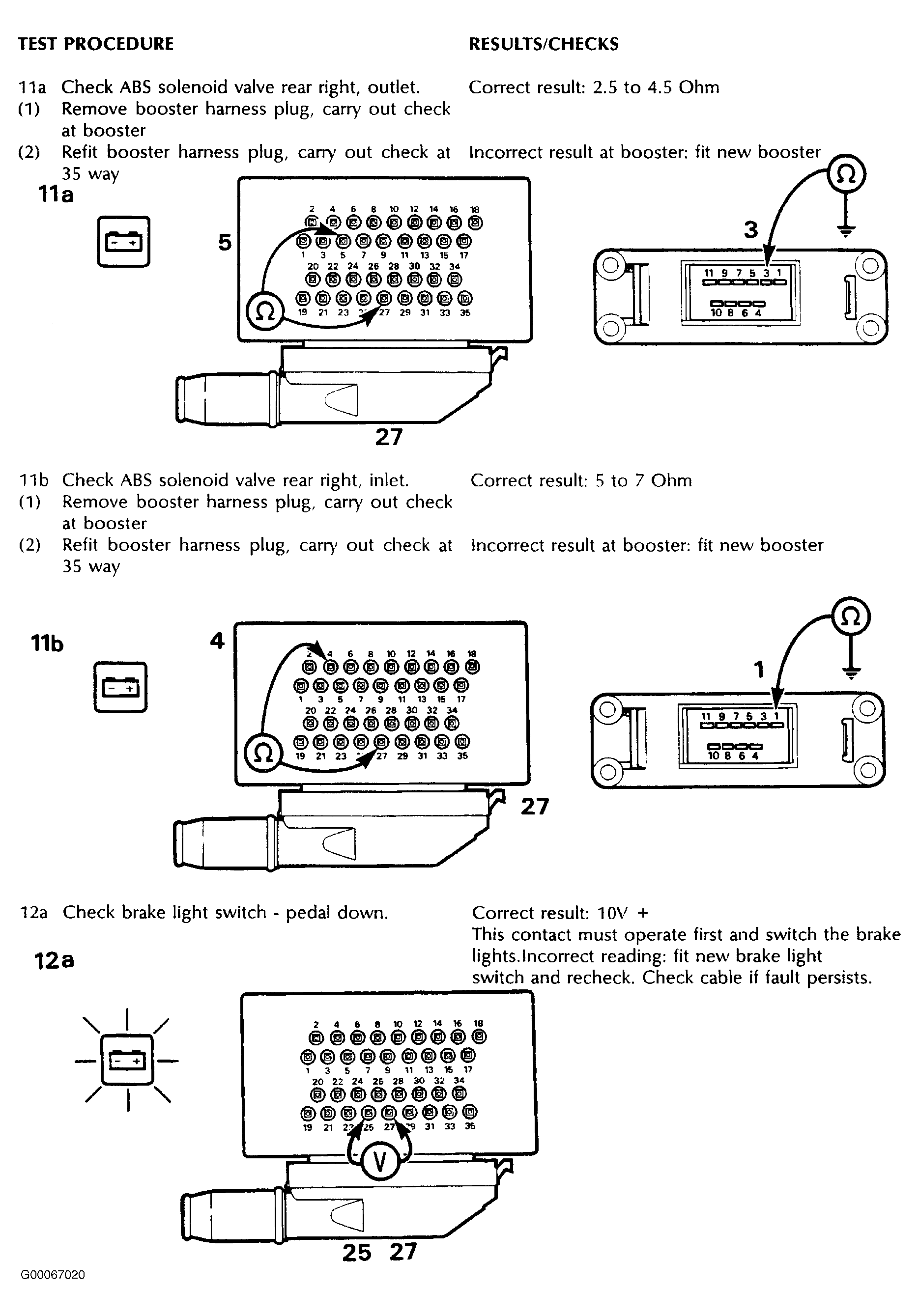

Fig 9: Test Procedure - Steps 11A-12A (8 Of 9)

G00067020

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 10: Test Procedure - Step 12B (9 Of 9)

G00067021

Courtesy of LAND ROVER NORTH AMERICA, INC.
